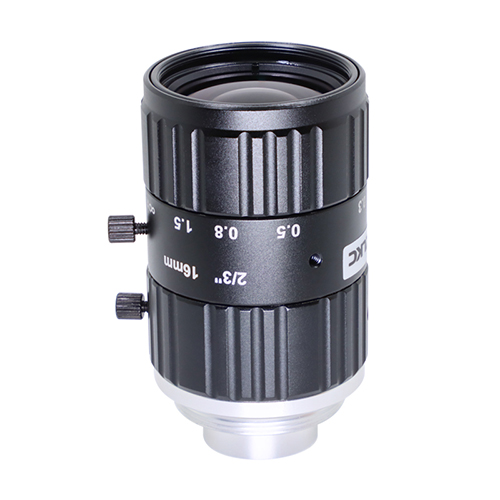

800万像素16mm 工业镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

VM1628MP8

mm

X

横边H

纵边V

像机尺寸Image Size

2/3-inch

1000

0.016X

550.0

412.5

焦距Focal length

16mm

900

0.018X

495.0

371.3

光圈范围F No.

F2.8-16

850

0.019X

467.5

350.6

最短物距M.O.D(m)

0.1-Inf.

800

0.020X

440.0

330.0

控制方式Operation

Iris

Manual手动调整

750

0.021X

412.5

309.4

Focus

Manual手动调整

700

0.023X

385.0

288.8

视场角

Angle of View

(D×H×V)

2/3"

30.8°×23.1°

650

0.025X

357.5

268.1

1/1.7"

26.5°×20.0°

600

0.027X

330.0

247.5

1/1.8"

25.3°×19.2°

550

0.029X

302.5

226.9

1/2"

22.6°×17.1°

500

0.032X

275.0

206.3

畸变TV Distortion

-0.12%

450

0.036X

247.5

185.6

法兰距Flange FL

17.526mm

400

0.040X

220.0

165.0

接口Mount

C-Mount

350

0.046X

192.5

144.4

近摄视野2/3"FOV

82.5mm×61.9mm(WD=150mm)

300

0.053X

165.0

123.8

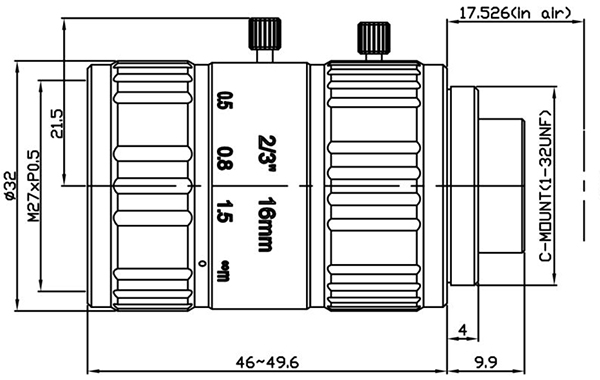

外形尺寸Dimension

Φ32×46mm

280

0.057X

154.0

115.5

重量Weight

76.3g

250

0.064X

137.5

103.1

分辨率 Resolution

8MP

200

0.080X

110.0

82.5

滤镜尺寸Filter

M27 P=0.5mm

150

0.107X

82.5

61.9

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.160X

55.3

41.4
