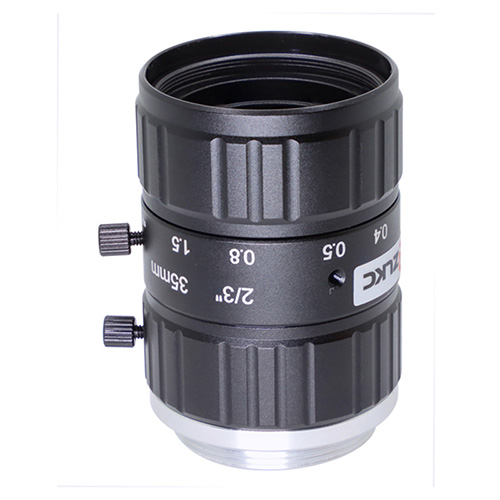

800万像素35mm 工业镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

VM3528MP8

mm

X

横边H

纵边V

像机尺寸Image Size

2/3-inch

2000

0.018X

496.7

372.5

焦距Focal length

35mm

1000

0.035X

251.4

188.6

光圈范围F No.

F2.8-16

900

0.039X

226.3

169.7

最短物距M.O.D(m)

0.15-Inf.

850

0.041X

213.7

160.3

控制方式Operation

Iris

Manual手动调整

800

0.044X

201.1

150.9

Focus

Manual手动调整

750

0.047X

188.6

141.4

视场角

Angle of View

(D×H×V)

2/3"

14.3°×10.8°

700

0.050X

176.0

132.0

1/1.7"

12.3°×9.2°

650

0.054X

163.4

122.6

1/1.8"

11.6°×8.7°

600

0.058X

150.9

113.1

1/2"

10.4°×7.8°

550

0.064X

138.3

103.7

畸变TV Distortion

-0.06%

500

0.070X

125.7

94.3

法兰距Flange FL

17.526mm

450

0.078X

113.1

84.9

接口Mount

C-Mount

400

0.088X

100.6

75.4

近摄视野2/3"FOV

50.3mm×37.7mm(WD=200mm)

350

0.100X

88.0

66.0

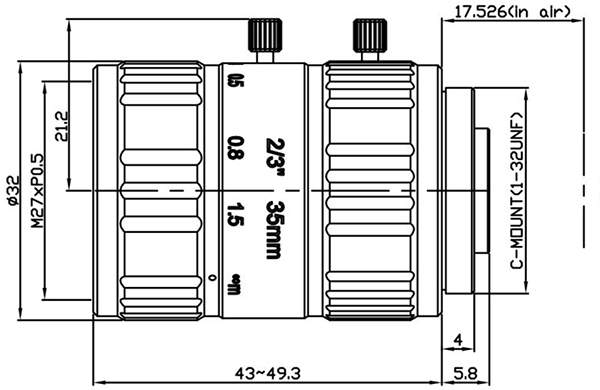

外形尺寸Dimension

Φ32×43mm

300

0.117X

75.4

56.6

重量Weight

70.5g

280

0.125X

70.4

52.8

分辨率 Resolution

8MP

250

0.140X

62.9

47.1

滤镜尺寸Filter

M27 P=0.5mm

200

0.175X

50.3

37.7

工作温度Working Temperature

-20ºC ～ +60ºC

150

0.233X

37.7

28.3
