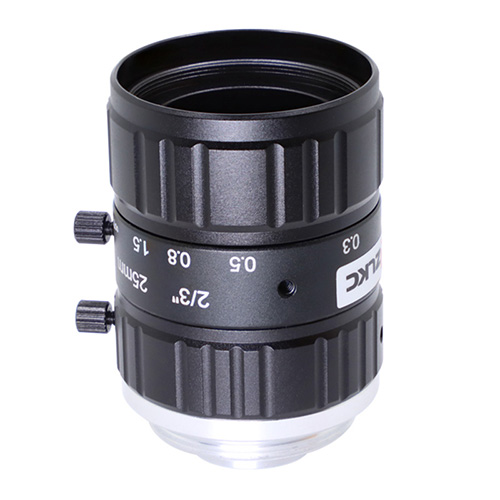

800万像素25mm FA低畸变镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3" Field of View(8.45*7.07mm)

型号Model

LM2528MP8

mm

X

H

V

像机尺寸Image Size

Φ11mm(2/3")

∞

-

-

-

焦距Focal length

25mm

1000

0.0254X

332.215

277.981

光圈范围F No.

F2.8-16

900

0.0283X

298.456

249.729

最短物距M.O.D(m)

0.2-Inf.

800

0.0319X

264.696

221.477

控制方式Operation

Iris

Manual手动调整

700

0.0366X

230.936

193.225

Focus

Manual手动调整

650

0.0395X

214.056

179.099

视场角(D*H*V)

Angle of View

2/3"

25.44°×20.4°×15.5°

600

0.0429X

197.175

164.973

畸变Distortion

<0.02%

550

0.0469X

180.295

150.847

光学后焦BFL

14.2mm

500

0.0517X

163.415

136.722

法兰后焦Flange BFL

17.526mm

450

0.0577X

146.534

122.596

接口Mount

C-Mount

400

0.0652X

129.653

108.470

最大主光线夹角CRA

15°

350

0.0750X

112.771

94.344

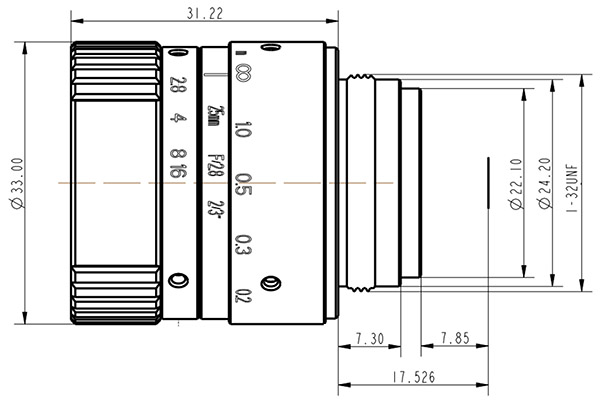

外形尺寸Dimension

Φ33×31.22mm

300

0.0882X

95.889

80.218

重量Weight

52.8g

250

0.1071X

79.006

66.092

分辨率Resolution

8MP

200

0.1362X

62.121

51.965

滤镜尺寸Filter Thread

M30.5x 0.5

150

0.1872X

45.232

37.837

工作温度Working Temperature

-20ºC ～ +60ºC

100

-

-

-
