800万像素50mm 工业镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

VM5028MP8

mm

X

横边H

纵边V

像机尺寸Image Size

2/3-inch

1200

0.042X

212.2

159.1

焦距Focal length

50mm

1000

0.050X

176.8

132.6

光圈范围F No.

F2.8-16

900

0.055X

161.7

121.2

最短物距M.O.D(m)

0.25-Inf.

850

0.058X

152.5

114.4

控制方式Operation

Iris

Manual手动调整

800

0.061X

143.3

107.5

Focus

Manual手动调整

750

0.066X

134.2

100.6

视场角

Angle of View

(D×H×V)

2/3"

10.1°×7.6°

700

0.070X

125.0

93.7

1/1.7"

8.6°×6.5°

650

0.076X

115.8

86.9

1/1.8"

8.1°×6.1°

600

0.083X

106.7

80.0

1/2"

7.3°×5.5°

550

0.090X

97.5

73.1

畸变TV Distortion

-0.01%

500

0.100X

88.3

66.2

法兰距Flange FL

17.526mm

450

0.111X

79.2

59.4

接口Mount

C-Mount

400

0.126X

70.0

52.5

近摄视野2/3"FOV

51.7mm×38.7mm(WD=300mm)

350

0.145X

60.8

45.6

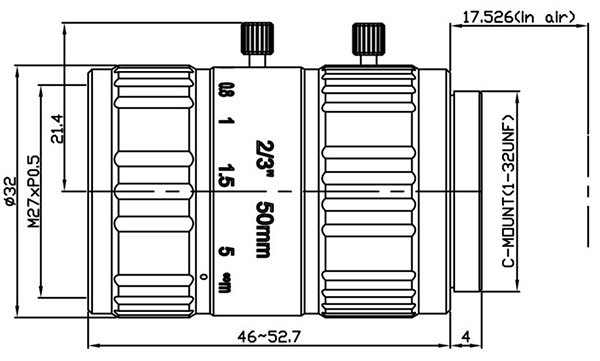

外形尺寸Dimension

Φ32×46mm

300

0.170X

51.7

38.7

重量Weight

68.0g

250

0.207X

42.5

31.9

分辨率 Resolution

8MP

200

0.264X

33.3

25.0

滤镜尺寸Filter

M27 P=0.5mm

150

0.364X

24.2

18.1

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.587X

15.0

11.1
