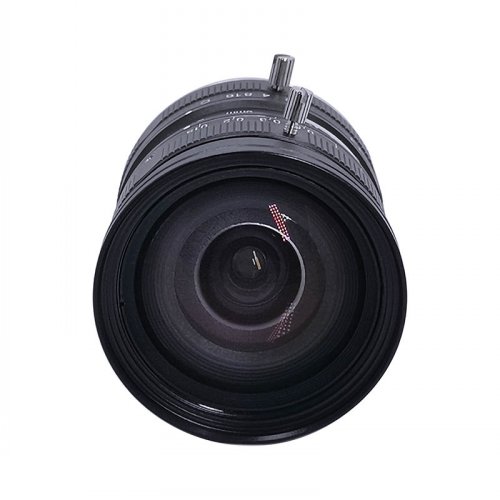

500万像素6mm低畸变FA镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

HM0614MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

1000

0.0057X

1469.6

1223.2

焦距Focal length

6mm

950

0.0060X

1397.8

1163.4

光圈范围F No.

F1.4-16

900

0.0064X

1326.0

1103.6

最短物距M.O.D(m)

0.1-Inf.

850

0.0067X

1254.0

1143.8

控制方式Operation

Iris

Manual手动调整

800

0.0071X

1182.2

983.8

Focus

Manual手动调整

750

0.0076X

1110.4

924.0

视场角

Angle of View

(D×H×V)

2/3"

86°×74°×58.6°

700

0.0081X

1038.6

864.2

1/2"

72°×58°×44.3°

650

0.0087X

966.6

804.4

畸变Distortion

<0.8%

600

0.0094X

894.8

744.4

光学后焦BFL

10.74mm

550

0.0103X

823.0

684.6

接口Mount

C-Mount

500

0.0112X

751.0

654.8

近摄视野Object Dimension

174.3mm×130mm(WD=100mm)

450

0.0124X

679.2

565.0

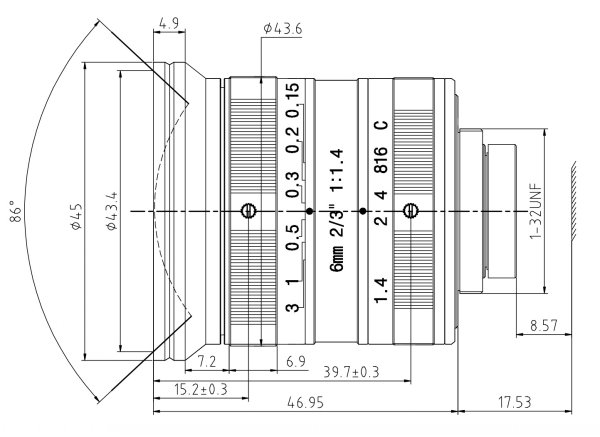

外形尺寸Dimension

Φ45×46.95mm

400

0.0139X

607.4

505.0

重量Weight

345.0g

350

0.0158X

535.5

445.2

分辨率Horizontal Resolution

5MP

300

0.0182X

463.6

385.4

滤镜尺寸Filter Thread

-

250

0.0216X

391.8

325.6

工作温度Working Temperature

-20ºC ～ +70ºC

200

0.0264X

320.0

265.6
