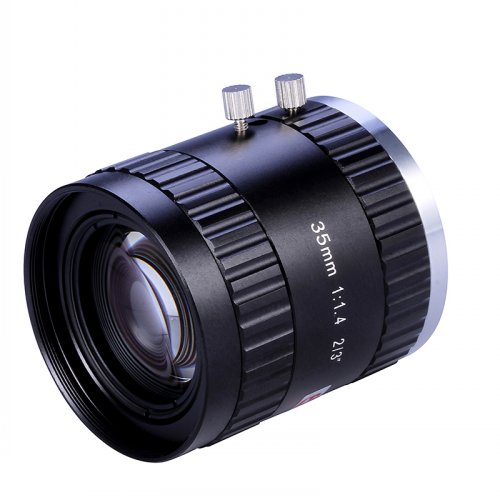

500万像素35mm低畸变FA镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 2/3"Field of View(mm)

型号Model

HM3514MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

900

0.037X

236.2

176.9

焦距Focal length

35mm

850

0.040X

223.2

167.2

光圈范围F No.

F1.4-16

800

0.042X

210.3

157.5

最短物距M.O.D(m)

0.2-Inf.

750

0.045X

197.3

147.8

控制方式Operation

Iris

Manual手动调整

700

0.048X

184.3

138.1

Focus

Manual手动调整

650

0.052X

171.4

128.4

视场角

Angle of View

(D×H×V)

2/3"

17.5°×14°×10.3°

600

0.056X

158.4

118.6

1/2"

12.6°×10.1°×7.6°

550

0.061X

145.5

108.9

畸变Distortion

<0.1%

500

0.067X

132.5

99.2

光学后焦BFL

12.82mm

450

0.074X

119.6

89.5

接口Mount

C-Mount

400

0.083X

106.6

79.8

近摄视野Object Dimension

80.7mm×60.4mm(WD=300mm)

350

0.094X

93.7

70.1

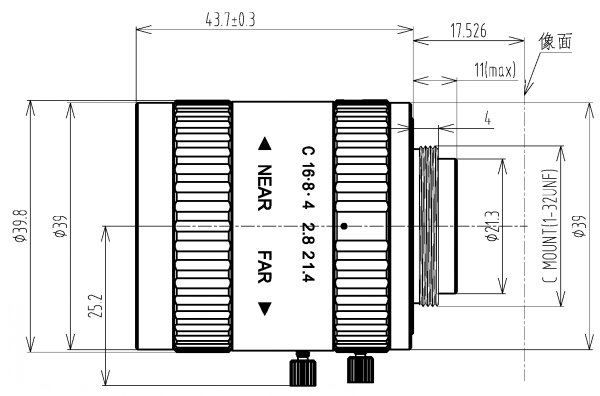

外形尺寸Dimension

Φ39×43.7mm

300

0.110X

80.7

60.4

重量Weight

130.0g

250

0.131X

67.7

50.6

分辨率Horizontal Resolution

5.0MP

200

0.162X

54.7

40.9

滤镜尺寸Filter Thread

M37x 0.5

150

0.213X

41.8

31.2

工作温度Working Temperature

-20ºC ～ +60ºC

-

-

-

-
