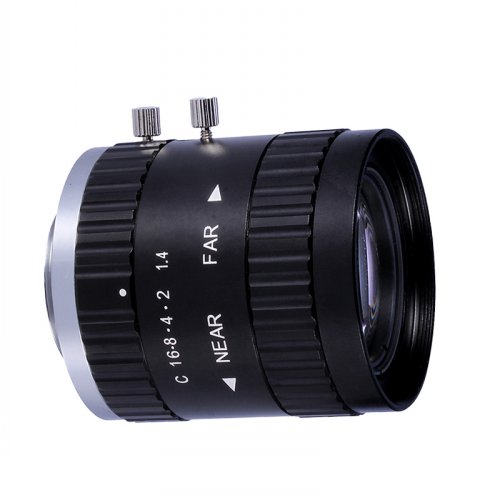

500万像素8mm低畸变FA镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

HM0814MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

900

0.009X

976.8

731.5

焦距Focal length

8mm

850

0.010X

923.3

691.4

光圈范围F No.

F1.4-16

800

0.010X

869.8

651.3

最短物距M.O.D(m)

0.1-Inf.

750

0.011X

816.3

611.2

控制方式Operation

Iris

Manual手动调整

700

0.012X

762.8

571.1

Focus

Manual手动调整

650

0.013X

709.3

531.0

视场角

Angle of View

(D×H×V)

2/3"

66.8°×55.8°×43.3°

600

0.014X

655.8

490.9

1/2"

53.1°×42.5°×32.4°

550

0.015X

602.3

450.8

畸变Distortion

<0.2%

500

0.016X

548.8

410.7

光学后焦BFL

10.74mm

450

0.018X

495.3

370.6

接口Mount

C-Mount

400

0.020X

441.8

330.5

近摄视野Object Dimension

334.8mm×250.3mm(WD=300mm)

350

0.023X

388.3

290.4

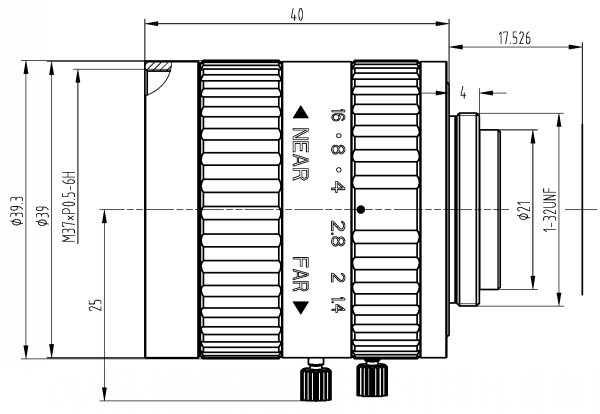

外形尺寸Dimension

Φ39×40mm

300

0.027X

334.8

250.3

重量Weight

115.0g

250

0.032X

281.2

210.2

分辨率Horizontal Resolution

5MP

200

0.039X

227.7

170.0

滤镜尺寸Filter Thread

M37x 0.5

150

0.052X

174.2

129.9

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.075X

120.7

89.8
