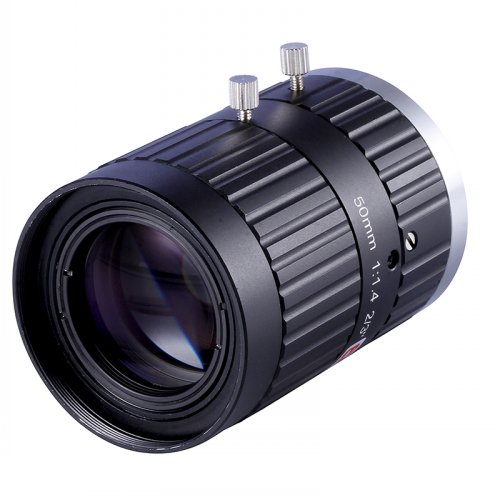

500万像素50mm低畸变FA镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 2/3"Field of View(mm)

型号Model

HM5014MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

2000

0.025X

352.0

264.0

焦距Focal length

50mm

1000

0.051X

172.5

129.4

光圈范围F No.

F1.4-16

900

0.057X

154.4

115.8

最短物距M.O.D(m)

0.3-Inf.

850

0.060X

146.7

110.0

控制方式Operation

Iris

Manual手动调整

800

0.064X

137.5

103.1

Focus

Manual手动调整

750

0.068X

129.4

97.1

视场角

Angle of View

(D×H×V)

2/3"

12.2°×10.5°×7.8°

700

0.073X

120.5

90.4

1/2"

9.5°×7.6°×5.3°

650

0.079X

111.4

83.5

畸变Distortion

<0.1%

600

0.086X

102.6

76.9

光学后焦BFL

13.63mm

550

0.094X

93.6

70.2

接口Mount

C-Mount

500

0.104X

84.6

63.5

近摄视野Object Dimension

84.6mm×63.5mm(WD=500mm)

450

0.116X

75.9

56.9

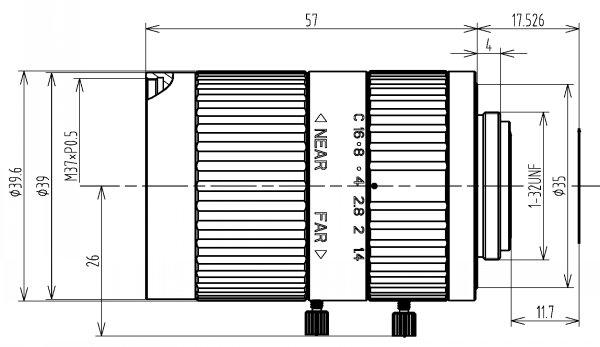

外形尺寸Dimension

Φ39×57mm

400

0.131X

67.2

50.4

重量Weight

132.0g

350

0.150X

58.7

44.0

分辨率Horizontal Resolution

5.0MP

300

0.177X

49.7

37.3

滤镜尺寸Filter Thread

M37x 0.5

-

-

-

-

工作温度Working Temperature

-20ºC ～ +60ºC

-

-

-

-
