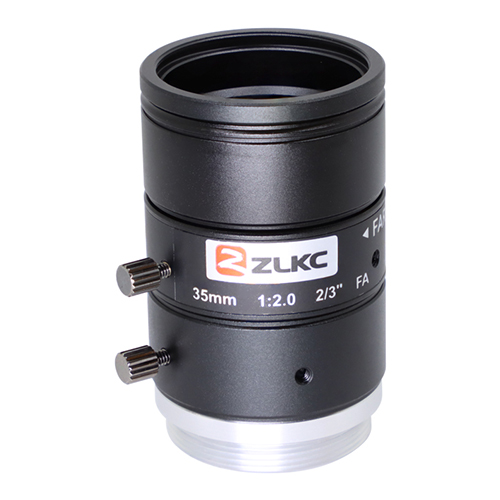

    10MP Industrial Lens 35mm LM3520MP10 Manual Iris camera Lens 2/3-inch C-Mount
    2/3″C-Mount 35mm 10MP
    Ultra-low object distance
    Can suppress stray light
    Low distortion,High resolution
    Locking set screws for focus and Iris

    10MP Low distance lens 35mm 2/3C Mount

    Model

    LM3520MP10

    Image circle

    2/3-inch (Φ11.4)

    Focal length

    35mm±5%

    F No.

    F2.0-16

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    16.5°×12.8°×10.7°

    1/1.8"Type

    13.5°×11.7°×7.4°

    1/2"Type

    12.1°×9.6°×7.2°

    Distortion

    At MOD.

    -0.03%

    Back focal length

    14.39mm

    Flange Back Focal Length

    17.526mm

    Mount

    C-Mount

    Relative Illumination

    71%

    CRA

    8.5°

    Dimension

    Ф29x43.24mm

    Weight

    66.8g

    Lens structure

    5groups8elements

    Filter Thread

    M25.5*P0.5

    Working Temperature

    -20ºC +60ºC

    Product Features
    Brand:ZLKC
    ◆ Image Size:2/3″ C-mount
    ◆ Focal length:f=35mm
    ◆ F No.:F2.0-16
    ◆ Features:10MP Industrial Lens 35mm Manual Iris C Mount Lens

    Model
    LM3520MP10

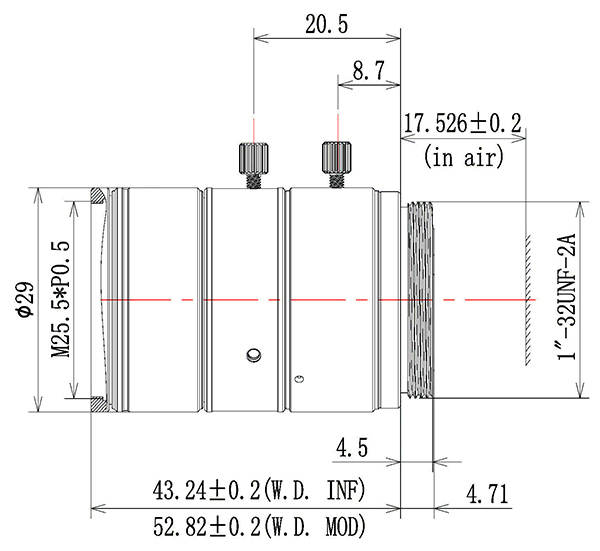

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
    LM3520MP10 Specifications
