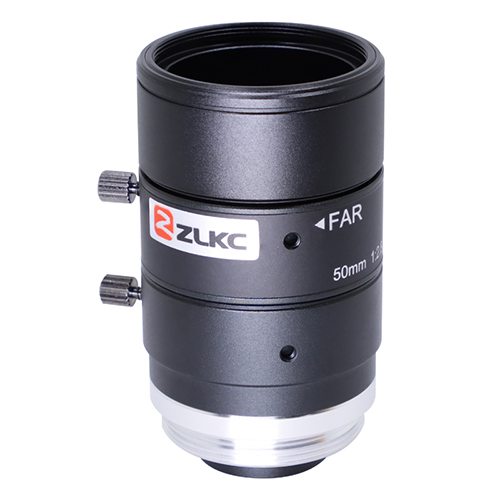

10MP Low distance lens 50mm 2/3”C Mount

Model

LM5028MP10

Image circle

2/3-inch (Φ11.4)

Focal length

50mm±5%

F No.

F2.8-16

M.O.D(m)

0.3-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

12.8°×10.2°×7.7°

1/1.8"Type

9.7°×8.0°×5.4°

1/2"Type

8.7°×7.0°×5.2°

Distortion

At 0.6m

-0.02%

Back focal length

11.8mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

70%

CRA

3.9°

Dimension

Ф29.4x43.9mm

Weight

72.4g

Lens structure

5groups，7elements

Filter Thread

M25.5*P0.5

Working Temperature

-20ºC ～ +60ºC
