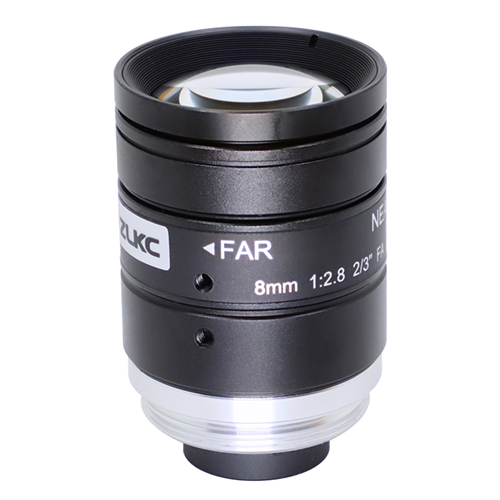

10MP Low distance lens 8mm 2/3”C Mount

Model

LM0828MP10

Image circle

2/3-inch (Φ11.4)

Focal length

8mm±5%

F No.

F2.8-16

M.O.D(m)

0.06-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

67.2°×53.5°×46°

1/1.8"Type

56.5°×47.7°×34.1°

1/2"Type

51.4°×42°×32.1°

Distortion

At 0.4m

-0.11%

Back focal length

8.72mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

60%

CRA

13.87°

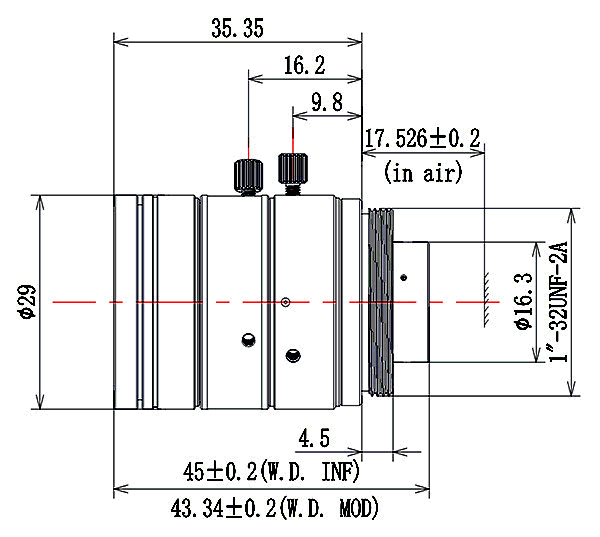

Dimension

Ф29x35.35mm

Weight

68.5g

Lens structure

11groups，12elements

Filter Thread

-

Working Temperature

-20ºC ～ +60ºC
