Line Scan Lens Φ30 Image Circle FL20mm TM2004K03 0.0358Ｘ M42*P1

Line Scan Lens Φ30 Image Circle FL20mm TM2004K03 0.0358Ｘ M42*P1: 0.358Ｘ M42*P1 f=20mm; Maximum image circle Φ30mm; High resolution and high measurement accuracy; Small Magnification and low distortion; applicable to 4K/8K 7μm line scan cameras; Option: Interface from V-Mount to M42,M58,F-mount

Tel:+86 020-38312466

Specifications Dimension PDF download Other

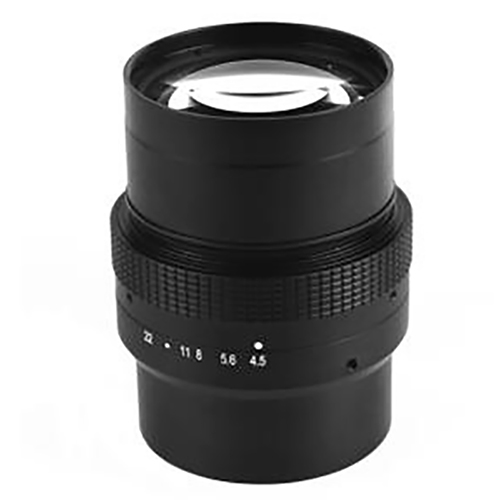

FL20mm Φ30 Image Circle 0.0358X Line Scan Lens
Model			TM2004K03
Max Image Circle			Φ30
Focal length			20mm
F No.			F4.5
Distortion			<0.2%
Operation		Iris	Manual
		Focus	Manual
Flange BFL			16mm
Mount			M42*P1
Dimension			Φ52×44.8mm
Filter			M43x 0.75
Working Temperature			-20ºC ～ +60ºC
Working Distance(mm)	Optical Magnification	Conjuguate Distance(mm)	Image Distance(mm)	（Φ30）Field of View(mm)
261.7±5	0.1X	261.7±9	14.6±2.5	300
557.4±5	0.0358X	619.1±9	13.3±2.5	838
998.7±5	0.02X	1060.1±9	13.0±2.5	1500

Product Features
◆ Brand：ZLKC
◆ Image Circle：Φ30 M42*P1
◆ Focal length：f=20mm
◆ F No.：F4.5
◆ Features：FL20mm M42*P1 Mount Φ30 Format 0.358X Marco Line Scan Lens

Model
TM2004K03

Dimension

Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

TM2004K03 Specifications
