    Line Scan Lens Φ30 Image Circle FL35mm TM3504K08 0.08Ｘ V-Mount
    0.08Ｘ V-Mount f=35mm
    Maximum image circle Φ30mm
    High resolution and high measurement accuracy
    Small Magnification and low distortion
    applicable to 4K/8K 7μm line scan cameras
    Option: Interface from V-Mount to M42,M58,F-mount
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    FL35mm Φ30 Image Circle 0.08X Line Scan Lens

    Model

    TM3504K08

    Max Image Circle

    Φ30

    Focal length

    35mm

    F No.

    F4.5

    Distortion

    <0.01%

    Operation

    Iris

    Manual

    Focus

    Manual

    Flange BFL

    35.81mm/37.42mm/38.22mm

    Mount

    V-Mount

    Dimension

    Φ46.4×28.6mm

    Filter

    M37x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    Conjuguate Distance(mm)

    Image Distance(mm)

    （Φ30）Field of View(mm)

    1008.5±5

    0.04X

    1072.9±9

    25.3±2.5

    750

    508.5±5

    0.08X

    574.5±9

    26.84±2.5

    375

    408.5±5

    0.1X

    475.3±9

    27.64±2.5

    300

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：Φ30 V-Mount
    ◆ Focal length：f=35mm
    ◆ F No.：F4.5
    ◆ Features：FL35mm V-Mount Φ30 Format 0.08X Marco Line Scan Lens

    Model
    TM3504K08

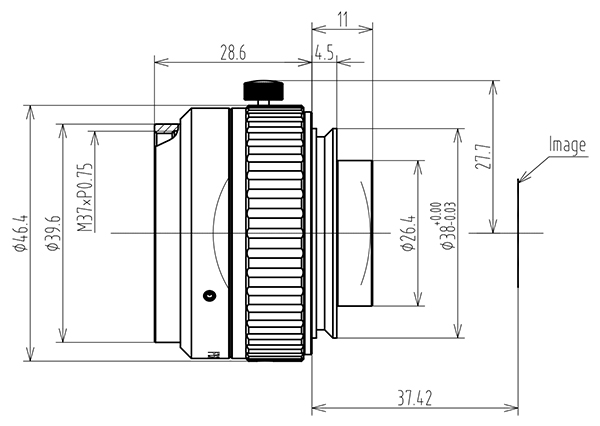

    Dimension


    Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.
    TM3504K08 Specifications
