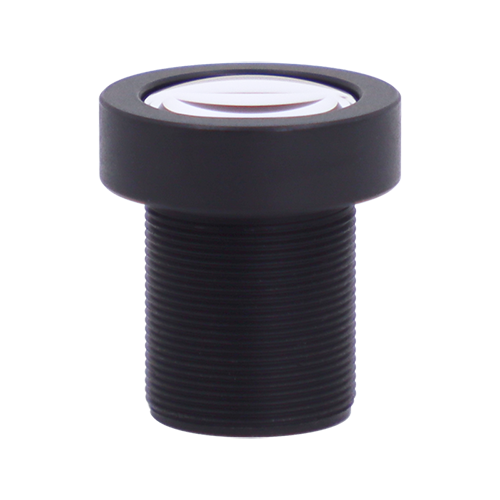

5MP 8mm Low distortion S-Mount |
Working Distance |
Optical Magnification |
1/1.8"Field of View(mm) |
|||
Model |
MTV08MP5C |
mm |
- |
H |
V |
|
Image Size |
1/1.8-inch |
900 |
0.009X |
792.2 |
594.1 |
|
Focal length |
8mm |
850 |
0.010X |
748.4 |
561.3 |
|
F No. |
800 |
0.010X |
704.6 |
528.4 |
||
M.O.D(m) |
0.1-Inf. |
750 |
0.011X |
660.8 |
495.6 |
|
Operation |
Iris |
Fix |
700 |
0.012X |
617.0 |
462.7 |
Focus |
Manual |
650 |
0.013X |
573.2 |
429.9 |
|
Angle of View (D×H×V) |
1/1.8" |
57°×48°×36° |
600 |
0.014X |
529.4 |
397.0 |
1/3" |
34.1°×33°×25.1° |
550 |
0.015X |
485.6 |
364.2 |
|
Distortion |
<0.1% |
500 |
0.016X |
441.8 |
331.3 |
|
BFL |
9.36mm |
450 |
0.018X |
398.0 |
298.5 |
|
Mount |
M12XP0.5 |
400 |
0.020X |
354.2 |
265.6 |
|
Object Dimension(mm) |
266.5×199.9 (WD=300mm) |
350 |
0.023X |
310.3 |
232.8 |
|
Resolusion |
5MP |
300 |
0.027X |
266.5 |
199.9 |
|

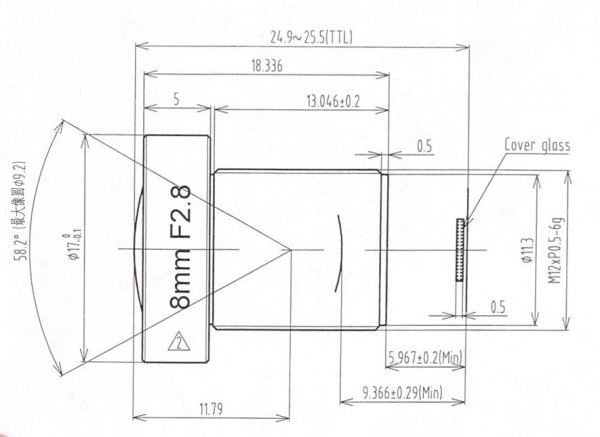

Dimension |
Φ17×18.34mm |
250 |
0.032X |
222.7 |
167.1 |
|
Weight |
7g |
200 |
0.040X |
178.9 |
134.2 |
|
Working Temperature |
-20ºC ~ +60ºC |
120 |
0.067X |
108.8 |
81.6 |
