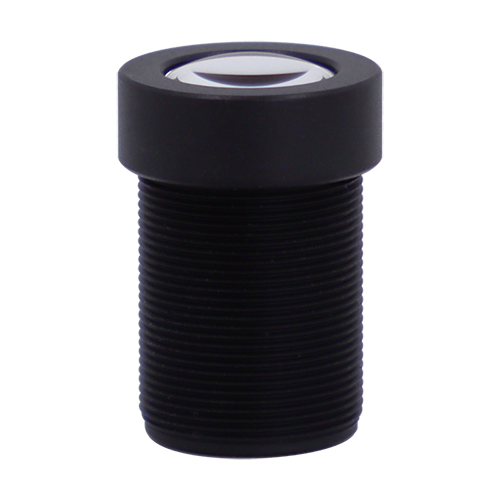

5MP 25mm Low distortion S-Mount |
Working Distance |
Optical Magnification |
1/1.8"Field of View(mm) |
|||
Model |
MTV25MP5C |
mm |
- |
H |
V |
|
Image Size |
1/1.8-inch |
950 |
0.027X |
267.8 |
200.9 |
|
Focal length |
25mm |
900 |
0.028X |
253.4 |
190.1 |
|
F No. |
850 |
0.030X |
239.0 |
179.3 |
||
M.O.D(m) |
0.2-Inf. |
800 |
0.032X |
224.6 |
168.4 |
|
Operation |
Iris |
Fix |
750 |
0.034X |
210.2 |
157.6 |
Focus |
Manual |
700 |
0.037X |
195.8 |
146.8 |
|
Angle of View (D×H×V) |
1/1.8" |
19.6°×15.8°×11.6° |
650 |
0.040X |
181.3 |
136.0 |
1/3" |
13.2°×10.6°×7.9° |
600 |
0.043X |
166.9 |
125.2 |
|
Distortion |
<0.05% |
550 |
0.047X |
152.5 |
114.4 |
|
BFL |
11.36mm |
500 |
0.052X |
138.1 |
103.6 |
|
Mount |
M12XP0.5 |
450 |
0.058X |
123.7 |
92.8 |
|
Object Dimension(mm) |
80.4×60.3 (WD=300mm) |
400 |
0.066X |
109.6 |
81.9 |
|
Resolusion |
5MP |
350 |
0.076X |
94.8 |
71.1 |
|
Dimension |
Φ14×14.5mm |
300 |
0.090X |
80.4 |
60.3 |
|
Weight |
7.3g |
250 |
0.109X |
66.0 |
49.5 |
|
Working Temperature |
-20ºC ~ +60ºC |
200 |
0.140X |
51.6 |
38.7 |
