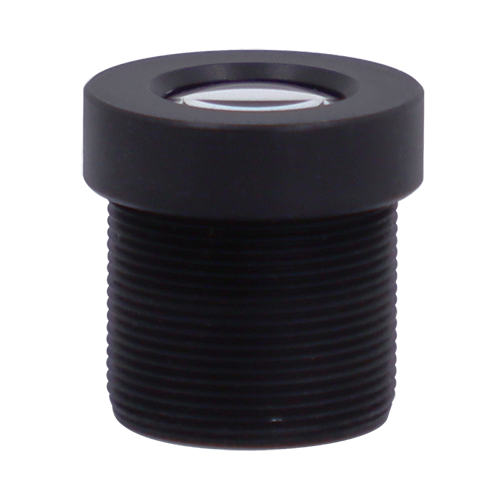

5MP 16mm Low distortion S-Mount |
Working Distance |
Optical Magnification |
1/1.8"Field of View(mm) |
|||
Model |
MTV16MP5C |
mm |
- |
H |
V |
|
Image Size |
1/1.8-inch |
850 |
0.019X |
375.7 |
281.7 |
|
Focal length |
16mm |
800 |
0.020X |
353.3 |
264.9 |
|
F No. |
750 |
0.022X |
330.8 |
248.1 |
||
M.O.D(m) |
0.1-Inf. |
700 |
0.023X |
308.4 |
231.3 |
|
Operation |
Iris |
Fix |
650 |
0.025X |
286.0 |
214.5 |
Focus |
Manual |
600 |
0.027X |
263.6 |
197.7 |
|
Angle of View (D×H×V) |
1/1.8" |
30.5°×24.6°×18.6° |
550 |
0.030X |
241.2 |
180.9 |
1/3" |
20.6°×17.3°×12.5° |
500 |
0.033X |
218.8 |
164.1 |
|
Distortion |
<0.1% |
450 |
0.037X |
196.3 |
147.3 |
|
BFL |
10.07mm |
400 |
0.042X |
173.9 |
130.4 |
|
Mount |
M12XP0.5 |
350 |
0.048X |
151.5 |
113.6 |
|
Object Dimension(mm) |
129.1×96.8 (WD=300mm) |
300 |
0.056X |
129.1 |
96.8 |
|
Resolusion |
5MP |
250 |
0.068X |
106.6 |
80 |
|
Dimension |
Φ14×9.79mm |
200 |
0.086X |
84.2 |
63.2 |
|
Weight |
6.3g |
150 |
0.117X |
61.8 |
46.3 |
|
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.184X |
39.3 |
29.5 |
