规格：1″C型 f=25mm F1.4
宽光谱红外镀膜700-1700nm
多层镀膜技术，透过率超过80%
低畸变、高对比度、边缘亮度高
紧凑型结构，抗震性能好
适用工业检测、分拣和夜间监控
申请报价
|
型号Model |
SW2514MP5IR |
|
|
像机尺寸Image Size |
1-inch |
|
|
焦距Focal length |
25mm |
|
|
光圈范围F No. |
F1.4-22 |
|
|
最短物距M.O.D(m) |
0.3-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
1" Type |
36.66°×29.35°×22.04° |
|
2/3"Type |
25.24°×20.20°×15.16° |
|
|
1/2"Type |
18.37°×14.70°×11.03° |
|
|
畸变Distortion |
1" Type |
-0.38% |
|
后焦距Back focal length |
20.73mm |
|
|
法兰距Flange FL |
17.526mm |
|
|
接口Mount |
C-Mount |
|
|
近摄视野Object Dimension (mm) WD=300mm |
157.08x116.85mm |
|
|

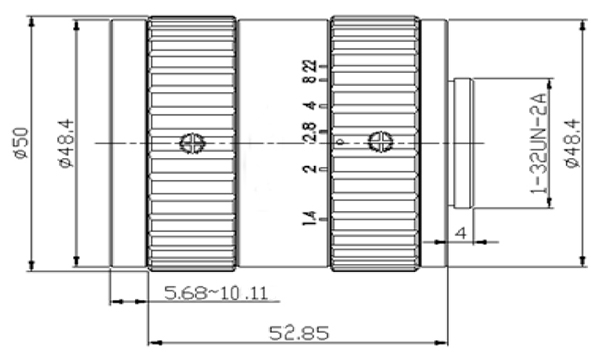

外形尺寸Dimension |
Ф50x58.53mm |
|
|
重量Weight |
242.0g |
|
|
光学波长optical wavelength |
700~1700nm |
|
|
滤镜尺寸Filter Thread |
M46x 0.75 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
