规格：2/3″C型 f=35mm F1.4
宽光谱红外镀膜750-1700nm
多层镀膜技术，透过率超过80%
高分辨率、高对比度、低畸变
紧凑型结构，抗震性能好
适用短波红外工业检测、夜间监控
申请报价
|
型号Model |
SW3514MPIR |
|
|
像机尺寸Image Size |
2/3-inch |
|
|
焦距Focal length |
35mm |
|
|
光圈范围F No. |
F1.4-16 |
|
|
最短物距M.O.D(m) |
0.15-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
2/3"Type |
17.4°×14.0°×10.6° |
|
1/2"Type |
13.04°×10.45°×7.85° |
|
|
1/3"Type |
9.8°×7.85°×5.89° |
|
|
畸变Distortion |
2/3"Type |
-0.03% |
|
后焦距Back focal length |
13.09mm |
|
|
接口Mount |
C-Mount |
|
|
近摄视野Object Dimension (mm) WD=300mm |
75.2x56.2mm |
|
|

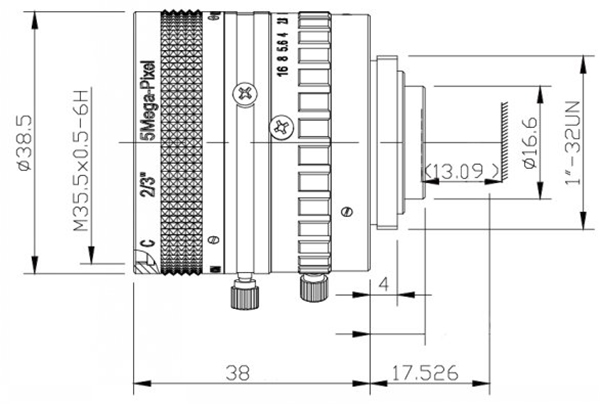

外形尺寸Dimension |
Ф38.5x35.11mm |
|
|
重量Weight |
122.0g |
|
|
分辨率Horizontal Resolution |
60lp/mm |
|
|
光学波长optical wavelength |
750~1700nm |
|
|
滤镜尺寸Filter Thread |
M35.5x 0.5 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
