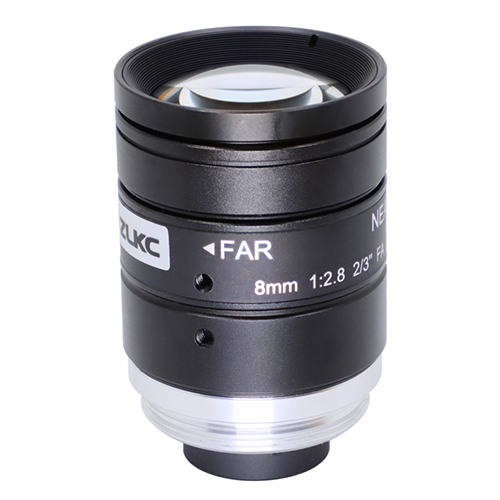

低物距工业镜头8mm 2/3” C Mount 10MP

型号Model

LM0828MP10

像面大小Image circle

2/3-inch (Φ11.4)

焦距Focal length

8mm±5%

光圈范围F No.

F2.8-16

最短物距M.O.D(m)

0.06-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

67.2°×53.5°×46°

1/1.8"Type

56.5°×47.7°×34.1°

1/2"Type

51.4°×42°×32.1°

畸变Distortion

At 0.4m

-0.11%

后焦距Back focal length

8.72mm

法兰后焦Flange Back Focal Length

17.526mm

接口Mount

C-Mount

相对亮度Relative Illumination

60%

最大主光线夹角（CRA)

13.87°

外形尺寸Dimension

Ф29x35.35mm

重量Weight

68.5g

镜片构成（Lens structure)

11groups，12elements

滤镜尺寸Filter Thread

-

工作温度Working Temperature

-20ºC ～ +60ºC
