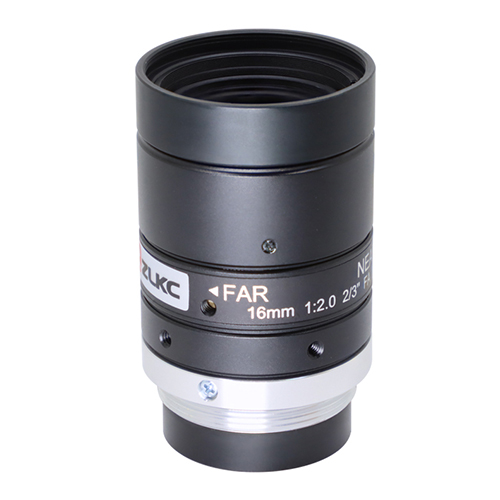

低物距工业镜头16mm 2/3” C Mount 10MP

型号Model

LM1620MP10

像面大小Image circle

2/3-inch (Φ11.4)

焦距Focal length

16mm±5%

光圈范围F No.

F2.0-16

最短物距M.O.D(m)

0.1-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

37.4°×29.3°×24.7°

1/1.8"Type

30.8°×26.8°×17.3°

1/2"Type

27.6°×22.4°×16.8°

畸变Distortion

At 0.4m

-0.1%

后焦距Back focal length

9.34mm

法兰后焦Flange Back Focal Length

17.526mm

接口Mount

C-Mount

相对亮度Relative Illumination

63%

最大主光线夹角（CRA)

8.5°

外形尺寸Dimension

Ф29x39.52mm

重量Weight

72.9g

镜片构成（Lens structure)

7groups，9elements

滤镜尺寸Filter Thread

M27*P0.5

工作温度Working Temperature

-20ºC ～ +60ºC
