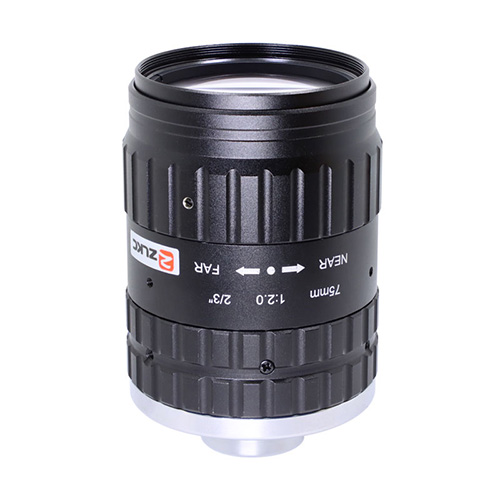

1000万像素75mm 工业镜头C Mount

物距

倍率

视野 2/3"(mm)

型号Model

FM7520MP10

mm

-

H

V

像机尺寸Image Size

2/3-inch

1350

0.0581X

151.4

113.6

焦距Focal length

75mm

1300

0.0605X

145.6

109.2

光圈范围F No.

F2.0-16

1250

0.0630X

139.7

104.8

最短物距M.O.D(m)

0.8-Inf.

1200

0.0658X

133.8

100.3

控制方式Operation

Iris

Manual手动调整

1150

0.0688X

127.9

95.9

Focus

Manual手动调整

1100

0.0721X

122.1

91.5

视场角

Angle of View

(D×H×V)

2/3"

8.4°×6.7°×5.0°

1050

0.0757X

116.2

87.1

1/2"

6.1°×4.9°×3.7°

1000

0.0798X

110.3

82.7

1/3"

4.6°×3.7°×2.7°

950

0.0843X0

104.4

78.3

工作波长 Operating Wavelength

400nm~700nm

900

0.8930X

98.54

74.0

畸变TV Distortion

-0.02%

850

0.0900X

93.5

70.3

光学后焦BFL

10.54mm(in air)

800

0.1000X

88.0

66.0

法兰距Flange FL

17.526mm

-

-

-

-

接口Mount

C-Mount

-

-

-

-

近摄视野2/3"FOV

94.5mm×79.0mm(WD=800mm)

-

-

-

-

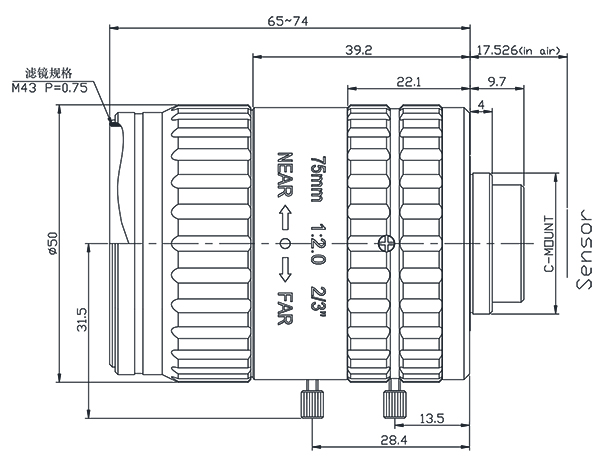

外形尺寸Dimension

Φ50×65mm

-

-

-

-

重量Weight

338.1g

-

-

-

-

分辨率 Resolution

10MP

-

-

-

-

滤镜尺寸Filter

M43 P=0.75mm

-

-

-

-

工作温度Working Temperature

-20ºC ～ +60ºC

-

-

-

-
