1000万像素16mm 工业镜头C Mount

物距

倍率

视野 2/3"(mm)

型号Model

FM1628MP10

mm

-

H

V

像机尺寸Image Size

2/3-inch

1000

0.016X

550.0

412.5

焦距Focal length

16mm

900

0.018X

495.0

371.3

光圈范围F No.

F2.8-16

850

0.019X

467.5

350.6

最短物距M.O.D(m)

0.1-Inf.

800

0.020X

440.0

330.0

控制方式Operation

Iris

Manual手动调整

750

0.021X

412.5

309.4

Focus

Manual手动调整

700

0.023X

385.0

288.8

视场角

Angle of View

(D×H×V)

2/3"

37.9°×30.8°×23.3°

650

0.025X

357.5

268.1

1/2"

28.1°×22.6°×17.1°

600

0.027X

330.0

247.5

1/3"

21.9°×19.2°×10.7°

550

0.029X

302.5

226.9

工作波长 Operating Wavelength

400nm~700nm

500

0.032X

275.0

206.3

畸变TV Distortion

-0.2%

450

0.036X

247.5

185.6

光学后焦BFL

9.88mm

400

0.040X

220.0

165.0

法兰距Flange FL

17.526mm

350

0.046X

192.5

144.4

接口Mount

C-Mount

300

0.053X

165.0

123.8

近摄视野2/3"FOV

165mm×123.8mm(WD=300mm)

280

0.057X

154.0

115.5

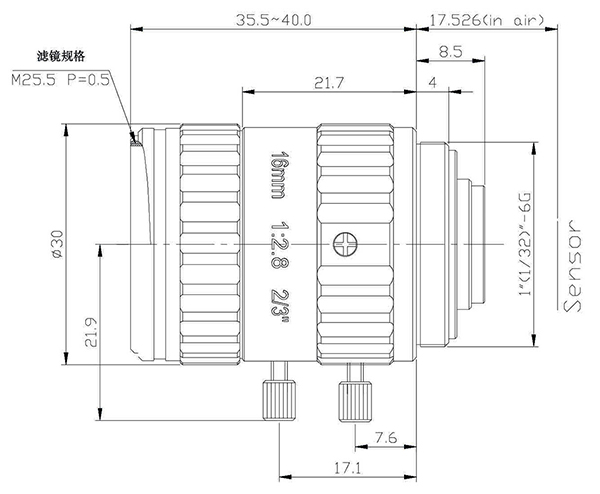

外形尺寸Dimension

Φ30×35.5mm

250

0.064X

137.5

103.1

重量Weight

75.0g

220

0.073X

121.0

90.8

分辨率 Resolution

10MP

200

0.080X

110.0

82.5

滤镜尺寸Filter

M25.5 P=0.5mm

180

0.089X

99.0

74.3

工作温度Working Temperature

-20ºC ～ +60ºC

150

0.107X

82.5

61.9
