型号Model

FK1628MP20

像机尺寸Image Size

1.1-inch

焦距Focal length

16mm

光圈范围F No.

F2.8-22

最短物距M.O.D(m)

0.1-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1.1" Type

58.6°×46.9°×35.2°

1"Type

53.9°×43.9°×33.5°

1/2"Type

28.2°×22.6°×17.0°

1/3"Type

21.3°×17.0°×12.9°

畸变Distortion

-0.73%@y=8.8㎜;-0.24%@y=4㎜

法兰后焦距(Flange BFL)

17.526mm

后焦距Back focal length

11.2mm

接口Mount

C-Mount

近摄视野1.1"FOV

99.84mm×74.88mm(WD=100mm)

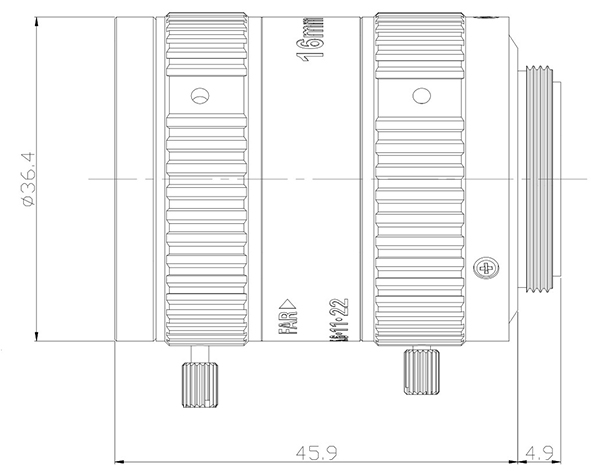

外形尺寸Dimension

Ф36.4x45.9mm

重量Weight

116.2g

滤镜尺寸Filter Thread

M34x 0.5mm

工作温度Working Temperature

-20ºC ～ +60ºC
