型号Model

FK2528MP20

像机尺寸Image Size

1.1-inch

焦距Focal length

25mm

光圈范围F No.

F2.8-22

最短物距M.O.D(m)

0.15-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1.1"  Type

39.5°×31.6°×23.6°

1"Type

36.2°×29.1°×21.9°

1/2"Type

18.5°×14.7°×11.1°

1/3"Type

13.8°×11.1°×8.3°

畸变Distortion

-0.59%@y=8.8㎜;-0.12%@y=4㎜

法兰后焦距(Flange BFL)

17.526mm

后焦距Back focal length

12.6mm

接口Mount

C-Mount

近摄视野1.1"FOV

81.4mm×61.1mm(WD=150mm)

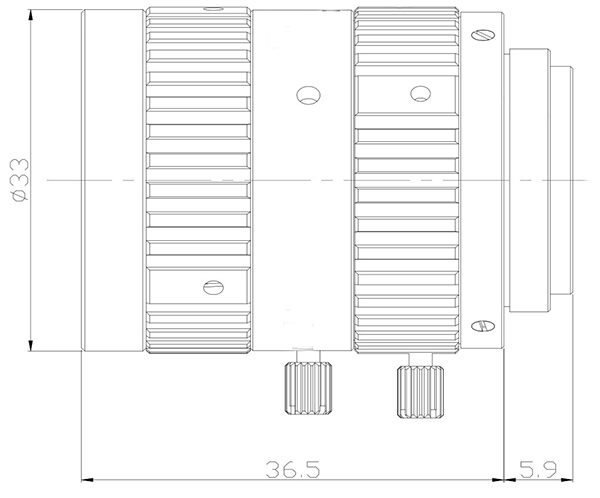

外形尺寸Dimension

Ф33x36.5mm

重量Weight

93.5g

滤镜尺寸Filter Thread

M30.5x 0.5mm

工作温度Working Temperature

-20ºC ～ +60ºC
