规格：4/3″C型 25mm
解像力高,成像一致性好
12MP分辨率，高清晰成像
超低畸变,图像光亮度好
紧凑型结构,抗震性能好
适用机器视觉,智能交通等
申请报价
|
型号Model |
KM2520MP12 |
|
|
像机尺寸Image Size |
4/3-inch |
|
|
焦距Focal length |
25mm |
|
|
光圈范围F No. |
F2.0-22 |
|
|
最短物距M.O.D(m) |
0.1-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
4/3" Type |
49.8°×40.6°×31.1° |
|
1"Type |
37.6°×29.1°×19.8° |
|
|
1/2"Type |
18.3°×14.6°×11.1° |
|
|
畸变Distortion |
-0.64%@y=11.5㎜;-0.15%@y=4㎜ |
|
|
法兰后焦距(Flange BFL) |
17.526mm |
|
|
后焦距Back focal length |
22mm |
|
|
接口Mount |
C-Mount |
|
|
近摄视野4/3"FOV |
125.7mm×94.1mm(WD=150mm) |
|
|

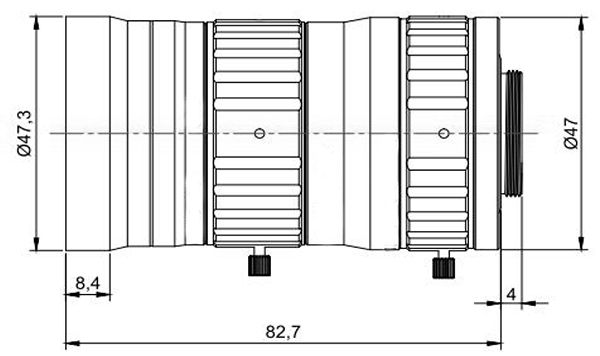

外形尺寸Dimension |
Ф47.3x82.7mm |
|
|
重量Weight |
253.5g |
|
|
滤镜尺寸Filter Thread |
M46x 0.75mm |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
