规格：4/3″C型 12mm
解像力高,成像一致性好
12MP分辨率，高清晰成像
超低畸变,图像光亮度好
紧凑型结构,抗震性能好
适用机器视觉,智能交通等
申请报价
|
型号Model |
KM1220MP12 |
|
|
像机尺寸Image Size |
4/3-inch |
|
|
焦距Focal length |
12mm |
|
|
光圈范围F No. |
F2.0-22 |
|
|
最短物距M.O.D(m) |
0.15-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
4/3" Type |
89.2°×76.8°×61.4° |
|
1"Type |
69.1°×57.8°×44.3° |
|
|
1/2"Type |
37.4°×30.2°×22.7° |
|
|
畸变Distortion |
-2.05%@y=11.5㎜;-1.0%@y=4㎜ |
|
|
法兰后焦距(Flange BFL) |
17.526mm |
|
|
后焦距Back focal length |
18.8mm |
|
|
接口Mount |
C-Mount |
|
|
近摄视野4/3"FOV |
262.7mm×204.5mm(WD=150mm) |
|
|

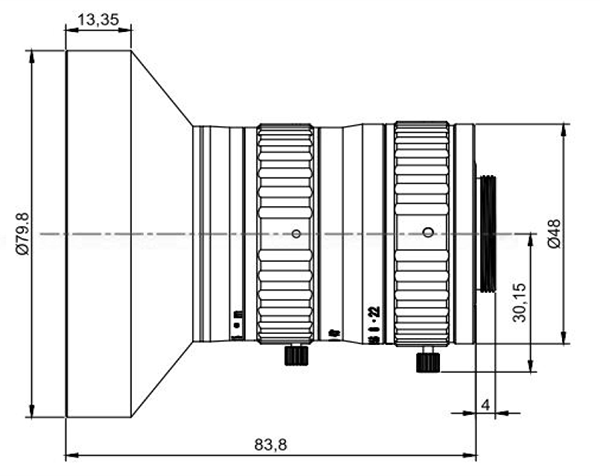

外形尺寸Dimension |
Ф79.8x83.8mm |
|
|
重量Weight |
452.2g |
|
|
滤镜尺寸Filter Thread |
M77x 0.75mm |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
