型号Model |
HM1614MPC |
|
像机尺寸Image Size |
1-inch |
|
焦距Focal length |
16mm |
|
光圈范围F No. |
F1.4-16 |
|
最短物距M.O.D(m) |
||
控制方式Operation |
Iris |
Manual手动调整 |
Focus |
Manual手动调整 |
|
视场角Horizontal Angle of View |
1" Type |
44.6°x33.6° |
2/3"Type |
30.0°x23.2° |
|
1/1.8"Type |
24.7°x18.6° |
|
接口Mount |
C-Mount |
|
畸变TV Distortion |
-0.5% |
|

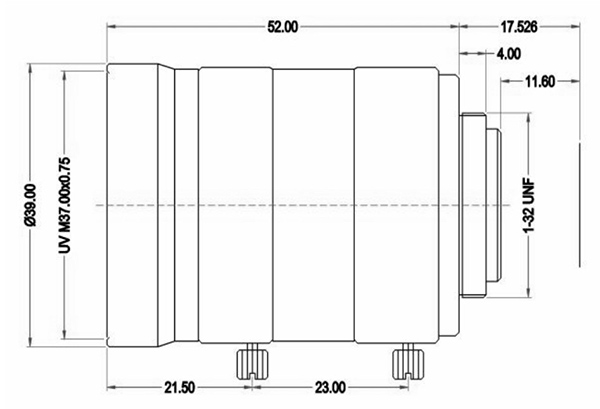

外形尺寸Dimension |
Ф39x52mm |
|
重量Weight |
140.0g |
|
滤镜尺寸Filter |
M37 P=0.75mm |
|
备注Remark |
1000万像素工业镜头 |
