型号Model |
HM2514MPC |
|
像机尺寸Image Size |
1-inch |
|
焦距Focal length |
25mm |
|
光圈范围F No. |
F1.4-C |
|
最短物距M.O.D(m) |
||
控制方式Operation |
Iris |
Manual手动调整 |
Focus |
Manual手动调整 |
|
视场角Horizontal Angle of View |
1" Type |
29.0°x21.9° |
2/3"Type |
20.1°x15.2° |
|
1/1.8"Type |
16.5°x12.4° |
|
接口Mount |
C-Mount |
|
畸变TV Distortion |
-0.25% |
|

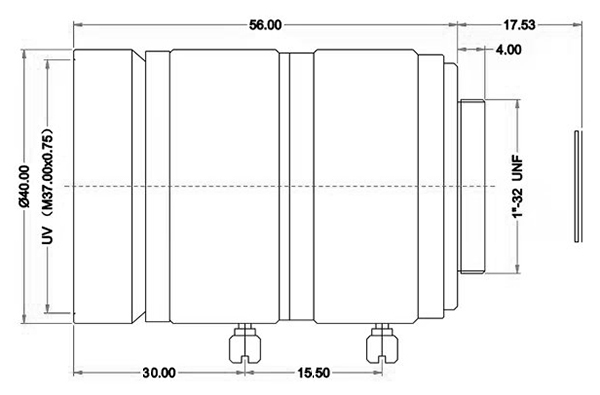

外形尺寸Dimension |
Ф40x56mm |
|
重量Weight |
160.0g |
|
滤镜尺寸Filter |
M37 P=0.75mm |
|
备注Remark |
1000万像素工业镜头 |
