1000万像素16mm 低畸变FA镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 2/3"Field of View(mm)

型号Model

HM1628MP10

mm

X

H

V

像机尺寸Image Size

2/3-inch

5000

0.0032X

2758.5

2070.5

焦距Focal length

16mm

2000

0.008X

1103.3

828.0

光圈范围F No.

F2.8-16

1000

0.016X

553.7

415.4

最短物距M.O.D(m)

0.1-Inf.

900

0.018X

498.6

374.1

控制方式Operation

Iris

Manual手动调整

800

0.020X

443.7

332.9

Focus

Manual手动调整

700

0.023X

388.8

291.7

视场角

Angle of View

(D×H×V)

2/3"

38.5°×30.8°×23.1°

600

0.026X

333.8

250.4

1/2"

28.3°×22.6°×17.0°

550

0.029X

306.2

229.7

1/3"

21.4°×17.1°×12.8°

500

0.032X

278.7

209.1

畸变Distortion

<0.1%

450

0.035X

251.2

188.4

光学后焦BFL

12.8mm

400

0.039X

223.6

167.8

接口Mount

C-Mount

350

0.045X

196.2

147.1

近摄视野Object Dimension

168.6mm×126.5mm (WD=300mm)

300

0.052X

168.6

126.5

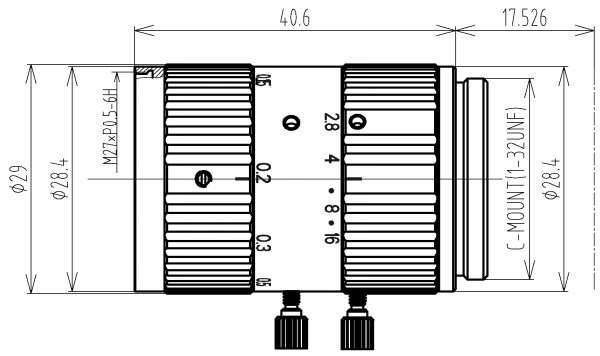

外形尺寸Dimension

Φ29×40.6mm

250

0.062X

141.1

105.8

重量Weight

56.5g

200

0.077X

113.6

85.2

滤镜尺寸Filter Thread

M27x 0.5

150

0.102X

86.1

64.6

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.150X

58.6

43.9
