500万像素50mm 工业镜头C Mount

物距

倍率

视野 2/3"(mm)

型号Model

FM5028MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

900

0.055X

161.7

121.2

焦距Focal length

50mm

850

0.058X

152.5

114.4

光圈范围F No.

F2.8-16

800

0.061X

143.3

107.5

最短物距M.O.D(m)

0.3-Inf.

750

0.066X

134.2

100.6

控制方式Operation

Iris

Manual手动调整

700

0.070X

125.0

93.7

Focus

Manual手动调整

650

0.076X

115.8

86.9

视场角

Angle of View

(D×H×V)

2/3"

12.6°×10.1°×7.6°

600

0.083X

106.7

80.0

1/1.8"

10.1°×8.1°×6.1°

550

0.090X

97.5

73.1

1/2"

9.1°×7.3°×5.5°

500

0.100X

88.3

66.2

1/2.9"

7.1°×6.2°×3.4°

450

0.111X

79.2

59.4

畸变TV Distortion

-0.02%

400

0.126X

70.0

52.5

光学后焦BFL

18.31mm

350

0.145X

60.8

45.6

法兰距Flange FL

17.526mm

300

0.170X

51.7

38.7

接口Mount

C-Mount

250

0.207X

42.5

31.9

近摄视野2/3"FOV

60.8mm×45.6mm(WD=350mm)

200

0.264X

33.3

25.0

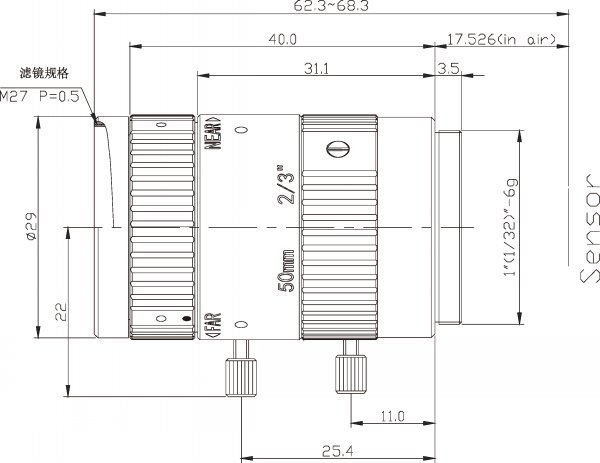

外形尺寸Dimension

Φ29×48.2mm

150

0.364X

24.2

18.1

重量Weight

84.0g

100

0.587X

15.0

11.1

分辨率 Resolution

5.0MP

-

-

-

-

滤镜尺寸Filter

M27 P=0.5mm

-

-

-

-

工作温度Working Temperature

-20ºC ～ +60ºC

-

-

-

-
