规格：2/3″C型 f=12mm
500万像素高分辨率
宽带增透膜,提高透光性能
解像力高,成像一致性好
低畸变,图像周边光亮比高
体积小,兼容可见光和红外波段
申请报价
|
500万像素工业镜头12mm 2/3” C Mount |
||
|
型号Model |
LM1228MP5 |
|
|
像面大小Image circle |
2/3-inch (Φ11) |
|
|
焦距Focal length |
12mm |
|
|
光圈范围F No. |
F2.8-16 |
|
|
最短物距M.O.D(m) |
0.1-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
2/3"Type |
49.55°×40.38°×30.88° |
|
1/2"Type |
37.0°×30.0°×22.72° |
|
|
1/3"Type |
28.2°×22.72°×17.14° |
|
|
近摄视野FOV |
2/3"Type |
109.92×87.53×65.17mm |
|
1/2"Type |
79.34×63.16×47.2mm |
|
|
1/3"Type |
59.16×47.2×35.34mm |
|
|
畸变Distortion |
-0.07% |
|
|
后焦距Back focal length |
9.85mm |
|
|
法兰后焦Flange Back Focal Length |
17.526mm |
|
|
接口Mount |
C-Mount |
|
|
最大主光线夹角 CRA |
6.28° |
|
|

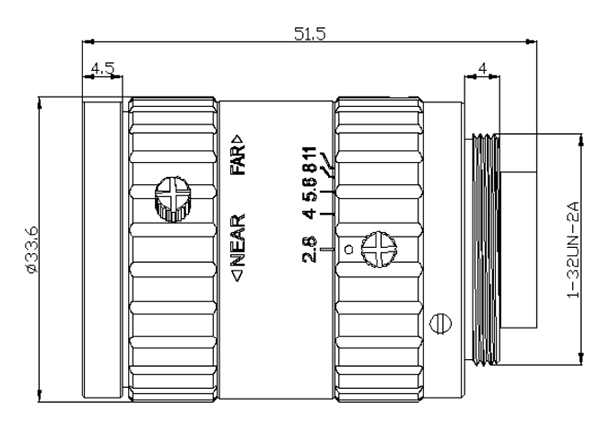

外形尺寸Dimension |
Φ33.6×45.17mm |
|
|
重量Weight |
77.8g |
|
|
滤镜尺寸Filter Thread |
M30.5*P0.5 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
