规格：2/3″C型 f=16mm
500万像素高分辨率
宽带增透膜,提高透光性能
解像力高,成像一致性好
低畸变,图像周边光亮比高
体积小,兼容可见光和红外波段
申请报价
|
500万像素工业镜头16mm 2/3” C Mount |
||
|
型号Model |
LM1628MP5 |
|
|
像面大小Image circle |
2/3-inch (Φ11) |
|
|
焦距Focal length |
16mm |
|
|
光圈范围F No. |
F2.8-16 |
|
|
最短物距M.O.D(m) |
0.2-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
2/3"Type |
37.86°×30.75°×23.32° |
|
1/2"Type |
28.08°×22.63°×17.08° |
|
|
1/3"Type |
21.26°×17.08°×12.85° |
|
|
近摄视野FOV |
2/3"Type |
151.63×121.30×90.98mm |
|
1/2"Type |
110.23×88.25×66.11㎜ |
|
|
1/3"Type |
82.64×66.11×49.58mm |
|
|
畸变Distortion |
-0.27% |
|
|
后焦距Back focal length |
8.97mm |
|
|
法兰后焦Flange Back Focal Length |
17.526mm |
|
|
接口Mount |
C-Mount |
|
|
最大主光线夹角 CRA |
5.7° |
|
|

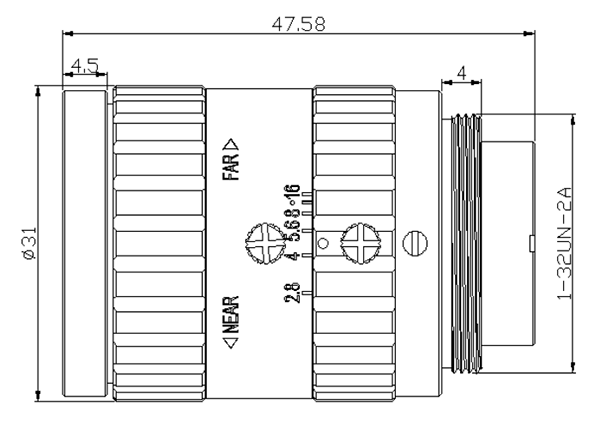

外形尺寸Dimension |
Φ31×37.92mm |
|
|
重量Weight |
64.2g |
|
|
滤镜尺寸Filter Thread |
M28.5*P0.5 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
