SWIR lens 5MP 1-inch Shortwave Infrared Lenses SW2514MP5IR 25mm C-Mount: 1″ C-Mount f=25mm 5MP; High resolution,wavelength 700-1700nm; Can suppress stray light; Low distortion,high contrast; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		SW2514MP5IR
Image Size		1-inch
Focal length		25mm
F No.		F1.4-22
M.O.D(m)		0.3-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	36.66°×29.35°×22.04°
	2/3"Type	25.24°×20.20°×15.16°
	1/2"Type	18.37°×14.70°×11.03°
Distortion	1" Type	-0.38%
Back focal length		20.84mm
Mount		C-Mount
Object Dimension (mm) WD=300mm		157.08x116.85mm
Dimension		Ф64x56.6mm
Weight		200.0g
Horizontal Resolution		100lp/mm
optical wavelength		700~1700mm
Filter Thread		M46x 0.75
Working Temperature		-20ºC ～ +60ºC

Product Features
◆ Brand：ZLKC
◆ Image Circle：2/3" C-Mount
◆ Focal length：f=25mm
◆ F No.：F1.4-22
◆ Features：5MP Focal length 25mm 1″C-Mount SWIR Shortwave Infrared Lenses

Model
SW2514MP5IR

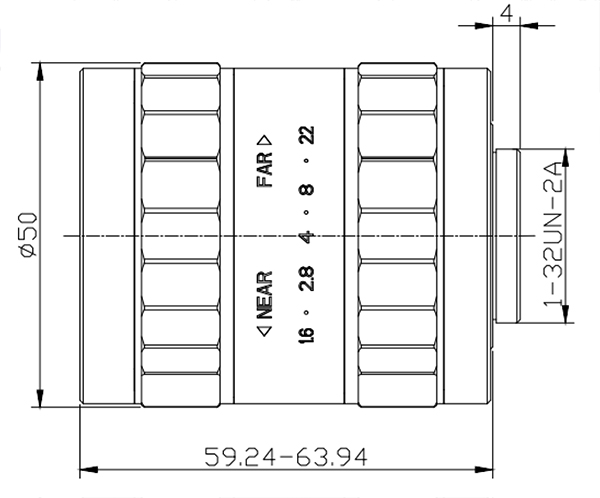

Dimension

Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.
