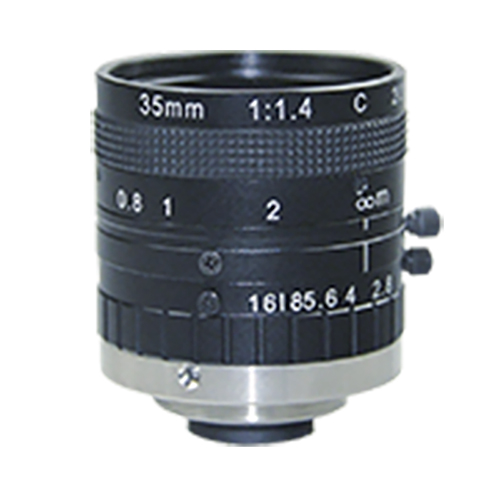

Model |
SW3514MPIR |
|
Image Size |
2/3-inch |
|
Focal length |
35mm |
|
F No. |
F1.4-16 |
|
M.O.D(m) |
0.15-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
2/3"Type |
17.4°×14.0°×10.6° |
1/2"Type |
13.04°×10.45°×7.85° |
|
1/3"Type |
9.8°×7.85°×5.89° |
|
Distortion |
2/3"Type |
-0.03% |
Back focal length |
13.09mm |
|
Mount |
C-Mount |
|
Object Dimension (mm) WD=300mm |
75.2x56.2mm |
|
Dimension |
Ф38.5x35.11mm |
|
Weight |
122.0g |
|
Horizontal Resolution |
60lp/mm |
|
optical wavelength |
750~1700mm |
|
Filter Thread |
M35.5x 0.5 |
|
Working Temperature |
-20ºC ~ +60ºC |
