SWIR lens 5MP 1-inch Shortwave Infrared Lenses SW3514MP5IR 35mm C-Mount: 1″ C-Mount f=35mm 5MP; High resolution,wavelength 700-1700nm; Can suppress stray light; Low distortion,high contrast; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		SW3514MP5IR
Image Size		1-inch
Focal length		35mm
F No.		F1.4-16
M.O.D(m)		0.3-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	26.54°×21.23°×15.92°
	2/3"Type	18.03°×14.43°×10.82°
	1/2"Type	13.19°×10.55°×7.91°
Distortion	1" Type	-0.27%
Back focal length		21.49mm
Mount		C-Mount
Object Dimension (mm) WD=350mm		108.75x81.56mm
Dimension		Ф50x58.5mm
Weight		189.0g
Horizontal Resolution		100lp/mm
optical wavelength		700~1700mm
Filter Thread		M46x 0.75
Working Temperature		-20ºC ～ +60ºC

Product Features
◆ Brand：ZLKC
◆ Image Circle：2/3" C-Mount
◆ Focal length：f=35mm
◆ F No.：F1.4-22
◆ Features：5MP Focal length 35mm 1″C-Mount SWIR Shortwave Infrared Lenses

Model
SW3514MP5IR

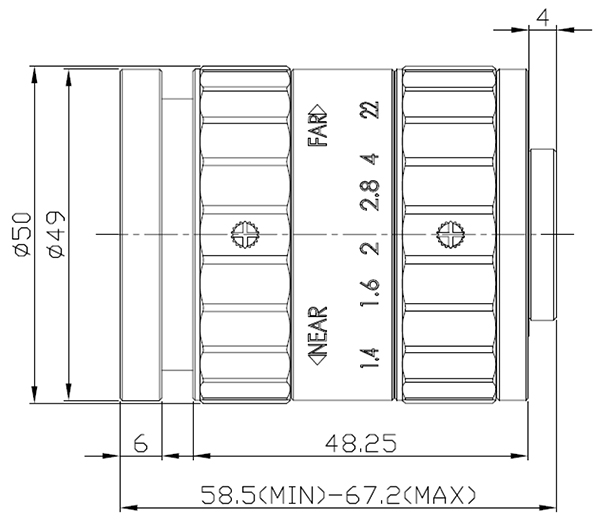

Dimension

Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.
