Model |

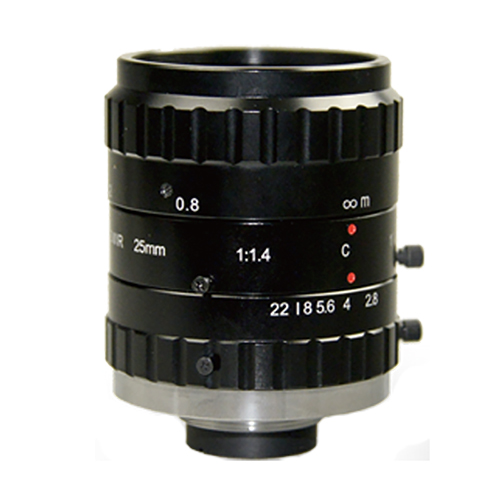

SW2514MPIR |
|
Image Size |
2/3-inch |
|
Focal length |
25mm |
|
F No. |
F1.4-16 |
|
M.O.D(m) |
0.2-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
2/3"Type |
23.6°×19.1°×14.4° |
1/2"Type |
17.6°×14.1°×10.6° |
|
1/3"Type |
13.2°×10.6°×8.1° |
|
Distortion |
2/3"Type |
-0.3% |
Back focal length |
9.98mm |
|
Mount |
C-Mount |
|
Object Dimension (mm) WD=250mm |
94.1x70.4mm |
|
Dimension |
Ф38.5x34.61mm |
|
Weight |
113.0g |
|
Horizontal Resolution |
60lp/mm |
|
optical wavelength |
750~1700mm |
|
Filter Thread |
M35.5x 0.5 |
|
Working Temperature |
-20ºC ~ +60ºC |
