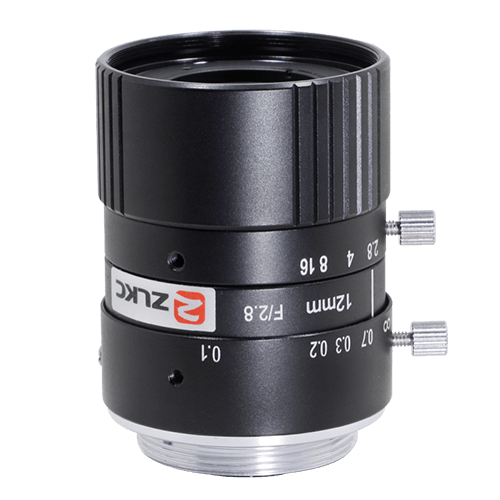

8MP 12mm FA Lens C Mount

Working Distance

Magnification

2/3"Field of View(mm)

Model

VM1228MP8

mm

-

H

V

Image Size

2/3-inch

1000

0.012X

733.3

550.0

Focal length

12mm

900

0.013X

660.0

495.0

F No.

F2.8-16

850

0.014X

623.3

467.5

M.O.D(m)

0.1-Inf.

800

0.015X

586.7

440.0

Operation

Iris

Manual

750

0.016X

550.0

412.5

Focus

Manual

700

0.017X

513.3

385.0

Angle of View

(D×H×V)

2/3"

40.3°×30.8°

650

0.018X

476.7

357.5

1/1.7"

34.8°×26.5°

600

0.020X

440.0

330.0

1/1.8"

33.0°×24.9°

550

0.022X

403.3

302.5

1/2"

29.9°×22.6°

500

0.024X

366.7

275.0

TV Distortion

-0.20%

450

0.027X

330.0

247.5

Flange FL

17.526mm

400

0.030X

293.3

220.0

Mount

C-Mount

350

0.034X

256.7

192.5

2/3"FOV

73.3cm×55.0cm(WD=100mm)

300

0.040X

220.0

165.0

Dimension

Φ32×43.5mm

250

0.048X

183.3

137.5

Weight

78.8g

200

0.060X

146.7

110.0

Resolution

8MP

180

0.067X

132.0

99.0

Filter

M27 P=0.5mm

150

0.080X

110.0

82.5

Working Temperature

-20ºC ～ +60ºC

100

0.120X

73.3

55.0
