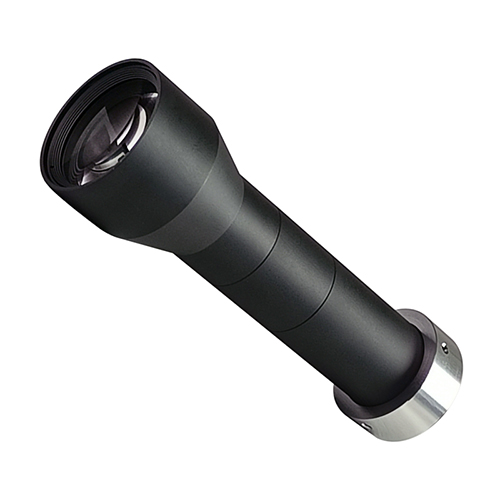

ZLKC high-resolution Telecentric lens HM05X110T 0.5x 110mm
2/3″ C-Mount 0.5x
Megapixels high-resolution telecentric lens
supporting working distance 110mm
Wide magnification ranges from 0.5X to 6X
object telecentric design
Low distortion,Excellent image uniformity
large aperature for high brightness
Metal structure，Compact design
widely applied in instant measurement
Contact
Tel:+86 020-38312466
SpecificationsDimensionPDF downloadOther

Model

HM05X110T

Max Image Size

2/3-inch

Magnification

0.5 X

WD (mm)

110

Working F/#

9.3

Object NA(mm)

0.027

Depth of field(mm)

0.83

Distortion

<0.05%

Resolution

12μ

FOV（WxH）(mm)

2/3"(8.8x6.6)

17.6x13.2

1/1.8"(7.13x5.37)

14.3x10.7

1/2"(6.4x4.8)

12.8x9.6

(° max)

<0.1°

Mount

C-Mount

TTL

141mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：0.5X
◆ WD：110mm±2mm
◆ Features：Telecentric Lens C-Mount 2x instant measurement lens

Model
HM05X110T

Dimension


Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
