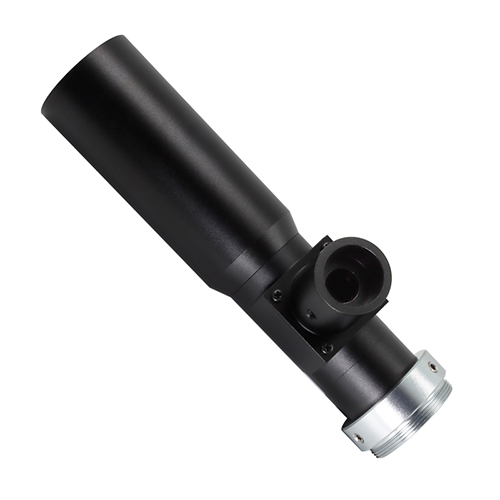

    ZLKC high-resolution coaxial Telecentric lens HM10X110CT 1x 110mm
    2/3″ C-Mount 1x coaxial
    Megapixels high-resolution telecentric lens
    supporting working distance 110mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    HM10X110CT

    Max Image Size

    2/3-inch

    Magnification

    1X

    WD (mm)

    110

    Working F/#

    11

    Object NA(mm)

    0.045

    Depth of field(mm)

    0.9

    Distortion

    <0.1%

    Resolution

    7.4μ

    FOV（WxH）(mm)

    2/3"(8.8x6.6)

    8.6x6.6

    1/1.8"(7.13x5.37)

    6.4x4.8

    1/2"(6.4x4.8)

    4.8x3.6

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    143mm


    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Magnification：1X
    ◆ WD：110mm
    ◆ Features：Coaxial Telecentric Lens C-Mount 1x instant measurement lens

    Model
    HM10X110CT

    Dimension


    Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
    HM10X110CT specification
