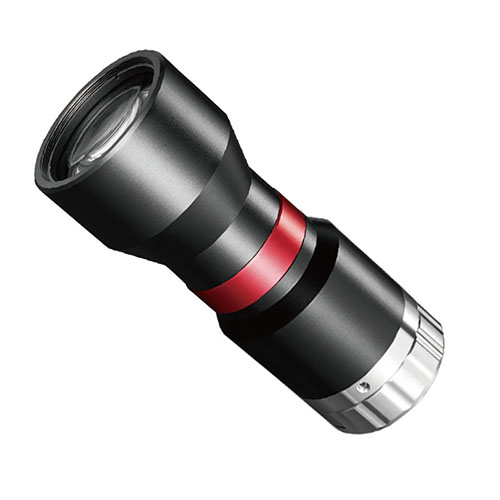

    ZLKC megapixel Telecentric lens FK07X73T 0.708x 73mm
    1.1″ C-Mount 0.708x
    Megapixels high-resolution telecentric lens
    supporting working distance 65mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    FK07X73T

    Max Image Size

    1.1-inch

    Magnification

    0.7X

     WD (mm)

    73

    Working F/#

    9.6

    MTF30 (lp/mm)

    >75

    Depth of field(mm)

    ±1.6@F20

    Distortion

    <0.1%

    Resolution

    16.2μ

    FOV（WxH）(mm)

    1.1" IMX253 (14.19x10.38)

    20.0x14.7

    1" IMX183 (13.13x8.76)

    18.5x12.4

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    147.7mm

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Magnification：0.708x
    ◆ WD：73mm
    ◆ Features：High Mag Telecentric Lens C-Mount 0.708x instant measurement lens

    Model
    FK07X73T

    Dimension


    Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
    FK07X73T specification
