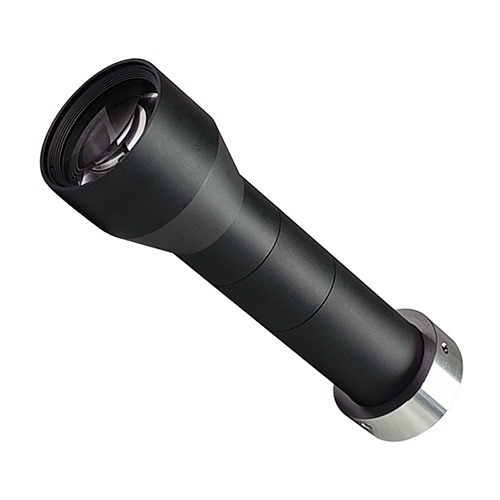

ZLKC high-resolution Telecentric lens HM60X110T 6x 110mm: 2/3″ C-Mount 6x; Megapixels high-resolution telecentric lens; supporting working distance 110mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		HM60X110T
Max Image Size		2/3-inch
Magnification		6 X
WD (mm)		110
Working F/#		35
Object NA(mm)		0.085
Depth of field(mm)		0.11
Distortion		<0.02%
Resolution		4μ
FOV（WxH）(mm)	2/3"(8.8x6.6)	1.5x1.1
	1/1.8"(7.13x5.37)	1.2x0.9
	1/2"(6.4x4.8)	1.1x0.8
(° max)		<0.1°
Mount		C-Mount
TTL		169.1mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：6X
◆ WD：110mm
◆ Features：High Mag Telecentric Lens C-Mount 6x instant measurement lens

Model
HM60X110T

Dimension

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
