1000万像素8mm工业镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

VM0828MP10

mm

X

横边H

纵边V

像机尺寸Image Size

2/3-inch

1000

0.0077X

1124.3

910.8

焦距Focal length

8mm

900

0.0085X

987.8

821.1

光圈范围F No.

F2.8-16

850

0.0091X

934.2

776.5

最短物距M.O.D(m)

0.15-Inf.

800

0.096X

879.7

731.2

控制方式Operation

Iris

Manual手动调整

750

0.010X

825.8

686.4

Focus

Manual手动调整

700

0.011X

771.9

641.6

视场角

Horizontal

Angle of View

(D×H×V)

2/3"

69.7°×58.5°×45.5°

650

0.012X

717.8

595.6

1/2"

50.7°×42.5°×33.1°

600

0.013X

664.1

551.9

1/3"

38°×31.9°×24.8°

550

0.014X

610.1

507.1

畸变Distortion

-0.81%

500

0.015X

556.1

462.2

光学后焦BFL

10.7mm

450

0.017X

502.1

417.3

法兰后焦Flange FL

17.526mm

400

0.019X

447.9

372.3

接口Mount

C-Mount

350

0.022X

394.0

327.5

近摄视野Object Dimension

178.1mm×148.1mm(WD=150mm)

300

0.025X

340.1

282.7

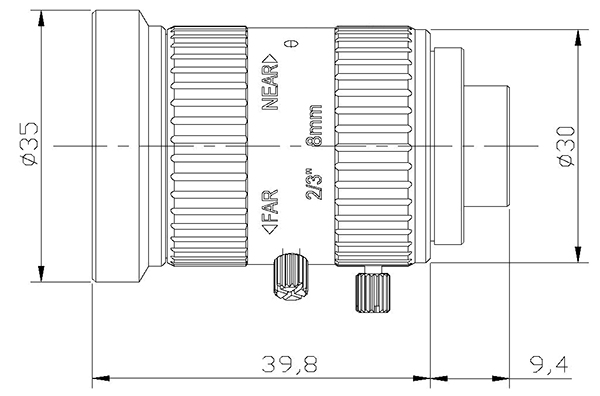

外形尺寸Dimension

Φ35×39.8mm

250

0.030X

286.2

237.8

重量Weight

83.4g

200

0.037X

232.2

193.0

滤镜尺寸Filter

M32.7xP0.5

150

0.048X

178.1

148.1

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.068X

125.4

104.2
