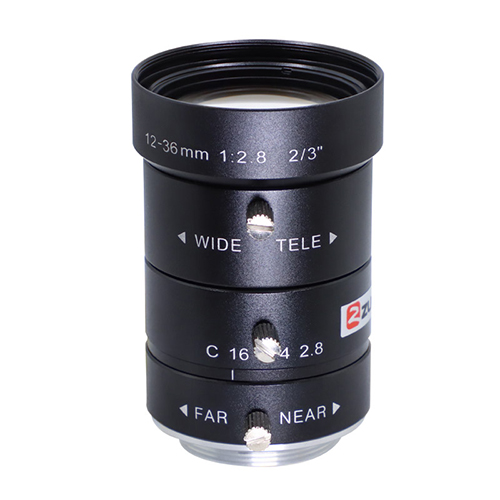

型号Model

VM12036MPC

像机尺寸Image Size

2/3-inch

焦距Focal length

12-36mm

光圈范围F No.

F2.8-16

最短物距M.O.D(m)

W:0.15m-∞ T:0.45m-∞

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

Zoom

Manual手动调整

畸变Distortion

2/3"Type

-1.42%@wide;-0.62%@tele

视场角Horizontal Angle of View

2/3"Type

W: 49.2°×40.3°×30.8° ; T: 17.4°×13.9°×10.5°

1/2"Type

W: 36.9°×30.0°×22.2° ; T: 12.7°×10.2°×7.6°

1/3"Type

W:28.5°×22.8°×17.2° ; T: 9.5°×7.6°×5.7°

近摄视野2/3"FOV ( W:0.15m; T:0.45m)

W:132.0mm×97.5mm ; T:109.6mm×91.7mm

接口Mount

C-Mount

光学后焦BFL

W:14.36mm T: 12.62mm

法兰距Flange FL

17.526mm

滤镜Filter Thread

M35.5 P=0.5mm

外形尺寸Dimension

Ф37x54mm

重量Weight

108.0g

备注Remark

5MP HD LENS
