型号Model

HK5020MP12

像机尺寸Image Size

1-inch

焦距Focal length

50mm

光圈范围F No.

F2.0-close

最短物距M.O.D(m)

0.25-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1" Type

18.4°×14.7°×11.0°

1/2"Type

9.3°×7.4°×5.5°

1/3"Type

7.0°×5.5°×4.2°

畸变Distortion

-0.01%

后焦距Back focal length

21.35mm

接口Mount

C-Mount

近摄视野1"FOV

57.9mm×43.3mm(WD=250mm)

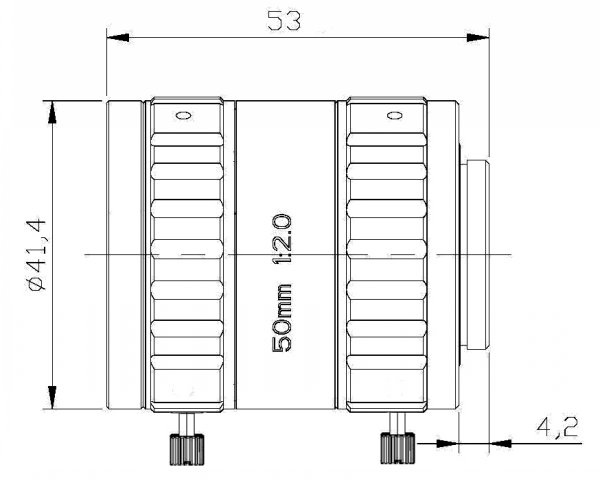

外形尺寸Dimension

Ф41.4x48.8mm

重量Weight

125.0g

分辨率Horizontal Resolution

超过180lp/mm

滤镜尺寸Filter Thread

M37x 0.5mm

工作温度Working Temperature

-20ºC ～ +60ºC
