规格：1″C型 f=25mm F1.6
5百万像素，画面整体均匀高透
采用低畸变设计，精度高
高对比度、保证画面亮度一致性
紧凑型结构，抗震性能好
适用工业检测、卡口抓拍等
申请报价
|
型号Model |
HK2516MP5 |
|
|
像机尺寸Image Size |
1-inch |
|
|
焦距Focal length |
25mm |
|
|
光圈范围F No. |
F1.6-22 |
|
|
最短物距M.O.D(m) |
0.25-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
1"Type |
36.3°×29.1°×21.7° |
|
2/3"Type |
24.9°×20.1°×15.1° |
|
|
1/2"Type |
18.2°×14.6°×11.1° |
|
|
畸变Distortion |
1"Type |
-1.3% |
|
1/2"Type |
-0.3% |
|
|
后焦距Back focal length |
12.69mm |
|
|
接口Mount |
C-Mount |
|
|
近摄视野1"FOV |
525.1mm×391.2mm(WD=1000mm) |
|
|

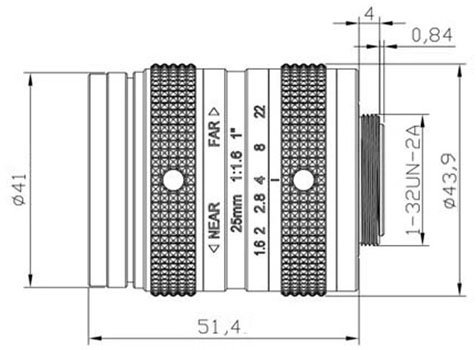

外形尺寸Dimension |
Ф41x51.4mm |
|
|
重量Weight |
158.0g |
|
|
分辨率Horizontal Resolution |
超过150lp/mm |
|
|
滤镜尺寸Filter Thread |
M39x 0.5 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
