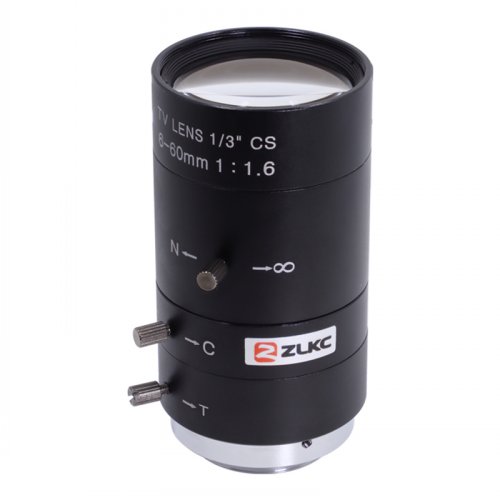

    ZLKC Lens VM06060MP 6-60mm Megapixel Manual Iris Lens, 1/3” Vari-focal HD Lens ​CCTV Lens CS Mount
    1/3″CS-Mount 6-60mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM06060MP

    Image Size

    1/3-inch

    Focal length

    6-60mm

    F No.

    F1.6-C

    M.O.D(m)

    0.3m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -7%@wide

    Horizontal Angle of View

    1/3"Type

    42°×4.5°

    Mount

    CS-Mount

    Dimension

    Ф36x66.5mm

    Weight

    108.0g

    Remark

    CCTV LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/3″ CS-mount
    ◆ Focal length：f=6-60mm
    ◆ F No.：F1.6-C
    ◆ Features：1/3-inch 6-60mm Megapixel Manual Iris Lens Vari-focal  Lens CS Mount HD Lens

    Model
    VM06060MP

    Dimension


    Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on
    VM06060MP specification
