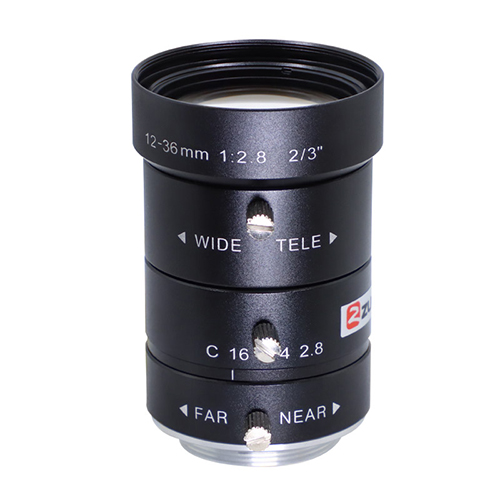

ZLKC Lens VM12036MPC 12-36mm 5Megapixel Manual Iris Lens, 2/3” Vari-focal HD Lens FA Lens C Mount
2/3″C-Mount 12-36mm
Manual Iris Lens
Optical glass material
Locking set screws for focus and zoom
Metal structure,compact appearance

Model

VM12036MPC

Image Size

2/3-inch

Focal length

12-36mm

F No.

F2.8-16

M.O.D(m)

W:0.15m- T:0.45m-

Operation

Iris

Manual

Focus

Manual

Zoom

Manual

Distortion

2/3"Type

-1.42%@wide;-0.62%@tele

Horizontal Angle of View

2/3"Type

W: 49.2°×40.3°×30.8° ; T: 17.4°×13.9°×10.5°

1/2"Type

W: 36.9°×30.0°×22.2° ; T: 12.7°×10.2°×7.6°

1/3"Type

W:28.5°×22.8°×17.2° ; T: 9.5°×7.6°×5.7°

2/3"FOV ( W:0.15m; T:0.45m)

W:132.0mm×97.5mm ; T:109.6mm×91.7mm

Mount

C-Mount

BFL

W:14.36mm T: 12.62mm

Flange FL

17.526mm

Filter Thread

M35.5 P=0.5mm

Dimension

Ф37x54mm

Weight

108.0g

Remark

5MP HD LENS

Product Features
Brand:ZLKC
◆ Image Size:2/3″ C-mount
◆ Focal length:f=12-36mm
◆ F No.:F2.8-16
◆ Features:2/3"12-36mm 5Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

Model
VM12036MPC

Dimension


Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on
