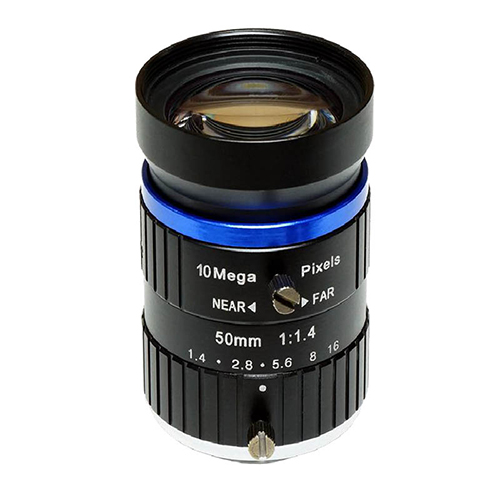

    1-inch FA Lens HM5014MPC 50mm 8MP C-Mount
    1″ C Mount f=50mm F1.4
    High resolution ,excellent image uniformity
    high contrast,Can suppress stray light
    Low distortion,High measurement accuracy
    Locking set screws for focus and Iris
    compact appearance for device integration
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    HM5014MPC

    Image Size

    1-inch

    Focal length

    50mm

    F No.

    F1.4-16

    M.O.D(m)

    0.3m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    14.5°x10.8°

    2/3"Type

    10.0°x7.5°

    1/1.8"Type

    8.2°x6.2°

    Mount

    C-Mount

    TV Distortion

    -0.25%

    Dimension

    Ф39x52mm

    Weight

    118.0g

    Filter

    M37 P=0.75mm

    Remark

    8MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F1.4
    ◆ Features：1-inch 50mm 8MP Manual Iris Lens,  F1.4 Fixed focus Lens C Mount HD Lens

    Model
    HM5014MPC

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on
    HM5014MPC Specifications
