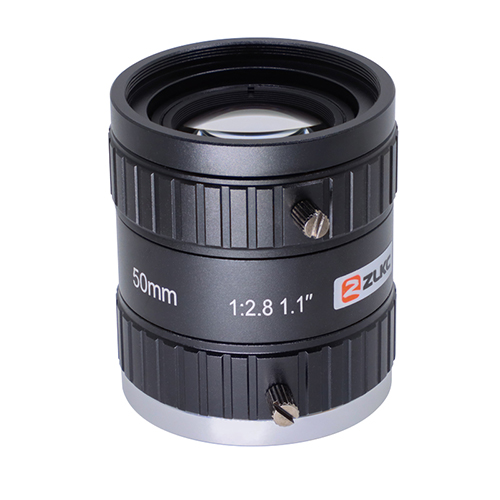

Model |
FK5028MP20 |
|
Image Size |
1.1-inch |
|
Focal length |
50mm |
|
F No. |
F2.8-22 |
|
M.O.D(m) |
0.25-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
1.1" Type |
20.0°×16.0°×12.0° |
1"Type |
18.4°×14.7°×11.0° |
|
1/2"Type |
9.3°7.4°×5.5° |
|
1/3"Type |
7.0°×5.5°×4.2° |
|
Distortion |
-0.05%@y=8.8㎜;-0.01%@y=4㎜ |
|
Flange BFL |
17.526mm |
|
Back focal length |
21.3mm |
|
Mount |
C-Mount |
|
1.1"FOV |
63.44mm×47.58mm(WD=250mm) |
|
Dimension |
Ф41.4x48.3mm |
|
Weight |
128.0g |
|
Filter Thread |
M37x 0.5mm |
|
Working Temperature |
-20ºC ~ +60ºC |
