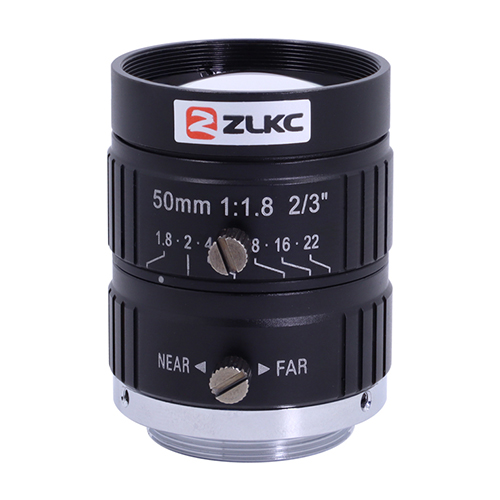

C-Mount Lens VM5018MPC 50mm 5MP F1.8 Manual Iris camera Lens 2/3-inch: 2/3″C-Mount 50mm F1.8; High resolution ,high clarity; Can suppress stray light; High resolution ,high clarity; Locking set screws for focus and Iris; Lower price,High cost performance

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		VM5018MPC
Image Size		2/3-inch
Focal length		50mm
F No.		F1.8
M.O.D(m)		0.3m-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	2/3"Type	10.1°x7.6°
	1/1.8"Type	8.2°x6.1°
Mount		C-Mount
TV Distortion		-0.3%

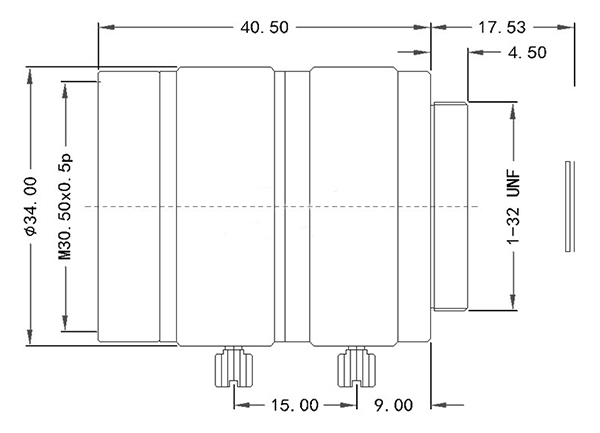

Dimension		Ф34x40.5mm
Weight		96.0g
Filter		M30.5 P=0.5mm
Remark		5MP HD LENS
